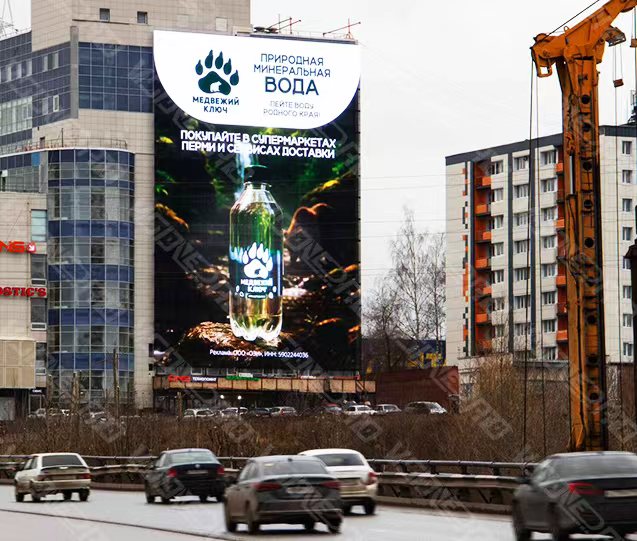

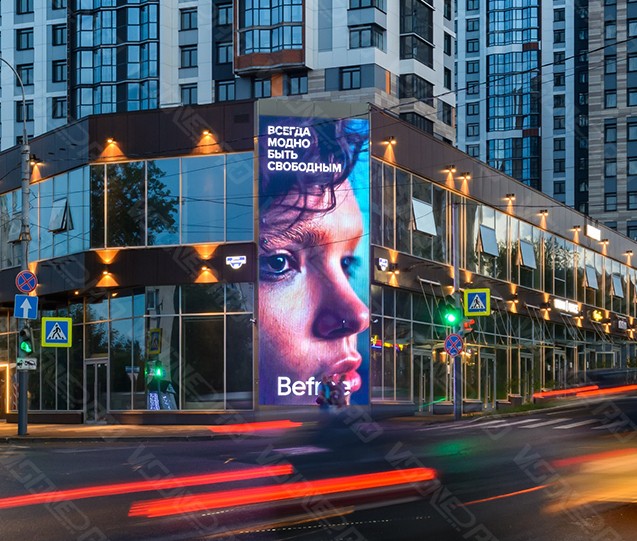

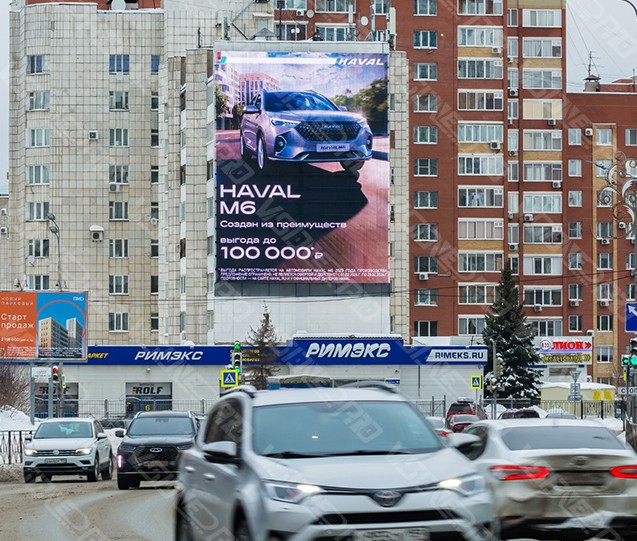

APPLICATION

Are You Excited ?

MFC INTRODUCTION

MFC series is an outdoor LED panel designed for fixed installation with up to 68% transparency. This makes it the perfect solution for large format digital signage on the outside of buildings, larger outdoor architectural elements, or even creative lower resolution applications. The high brightness from the DIP LEDs will overpower any direct sunlight to ensure your display is always vibrant. MFC design is extremely thin and  lightweight which makes for an easier and cost effective installation. Our Quick Lock System allows you to easily attach it to a standard T-Slot Aluminum Extrusion. Compared with traditional type, MFC series is more light and slim, front and back service, save cost on structure and labor cost.

PRODUCT FEATURES

01

Transparent led mesh curtain

One of the main advantages of the led mesh screen is transparency.

LED displays are up to 68% transparent and can be placed on the outside of a window without sacrificing natural light in your space.

It can let the wind go through. Furthermore, by adopting aluminum materials. It has very good heat dissipation. No-airconditioner is available even for a large-scale thousands square meters led curtain wall.

Meantime, the transparent led screen makes good use of the natural light.

02

IP67 & All-weather bearable

MFC is a IP 67 rated outdoor product that is built to withstand adverse weather conditions.

With a wide working temperature -30℃ to 80℃, the led strip curtain can work well in the extreme cold or hot weather.

03

Super high brightness

MFC series feature DIP LEDs which have a brightness of 10,000 Nit to ensure your display looks pristine in direct sunlight.

Thanks to using High brightness DIP 1R1G1B as one pixel, it can get super high brightness of 10,000 nits (cd/m²). Meanwhile, by adopting the static scanning and low-energy technology, MFC can show high brightness videos without consuming as much energy as the traditional led display.

04

Front service available

For any pitch led strip curtain, full front service including front installation and front maintenance is available. When you have not big space on the back for installation or the curtain wall is over the glass or window, the front service led curtain screen gives you the opportunity to make it into reality.

05

Without heavy steel structure

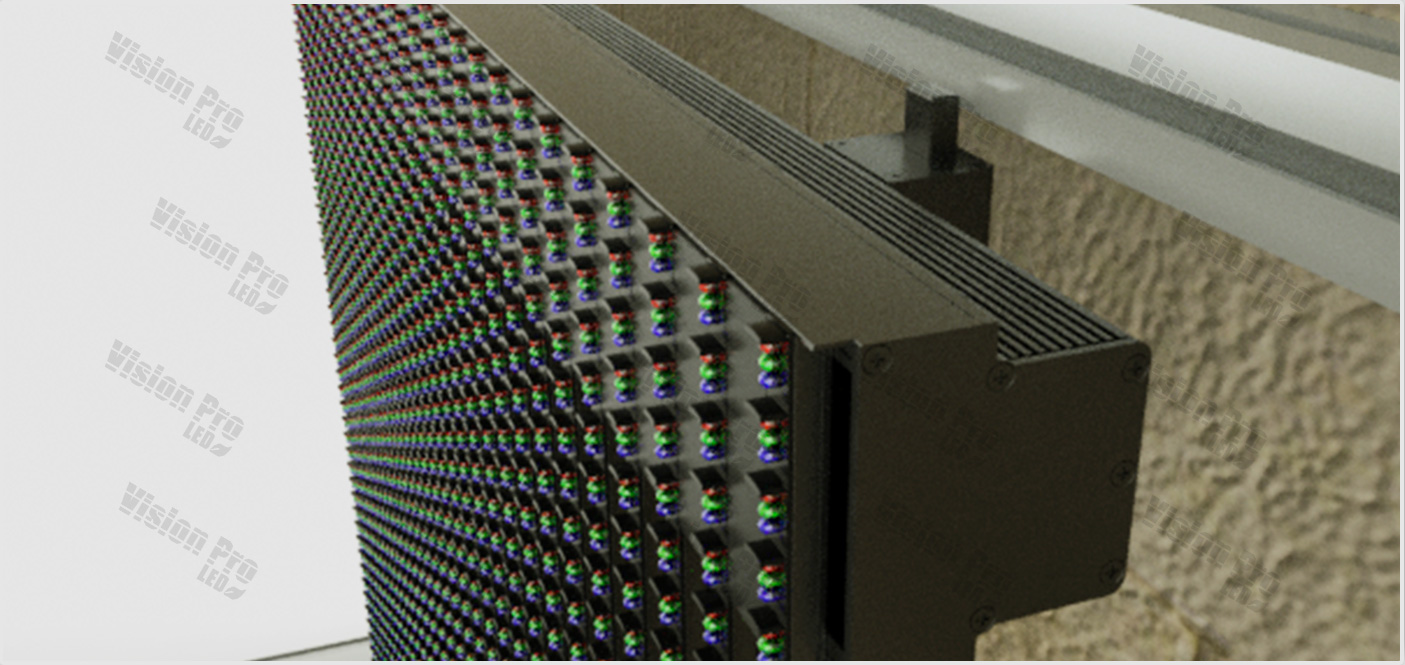

The slim profile of the MFC LED panel offers creative and artistic benefits in almost any commercial application.

Because of its lightweight and easy-installation structure, it doesn’t need to make a heavy and complex structure to support the curtain screen.

When you build any media facade, the cost not only includes the led mesh screen, but also the support frame, shipping and installation cost.

A simple structure undoubtedly can save you much cost from shipping to installation.

06

Lower energy consumption

The high brightness gold-wire led lamps and the PFC high-efficiency power supply both help the led curtain reduce the power consumption.Only MAX 400W per sqm, Average 120W per sqm

07

Easy Installation

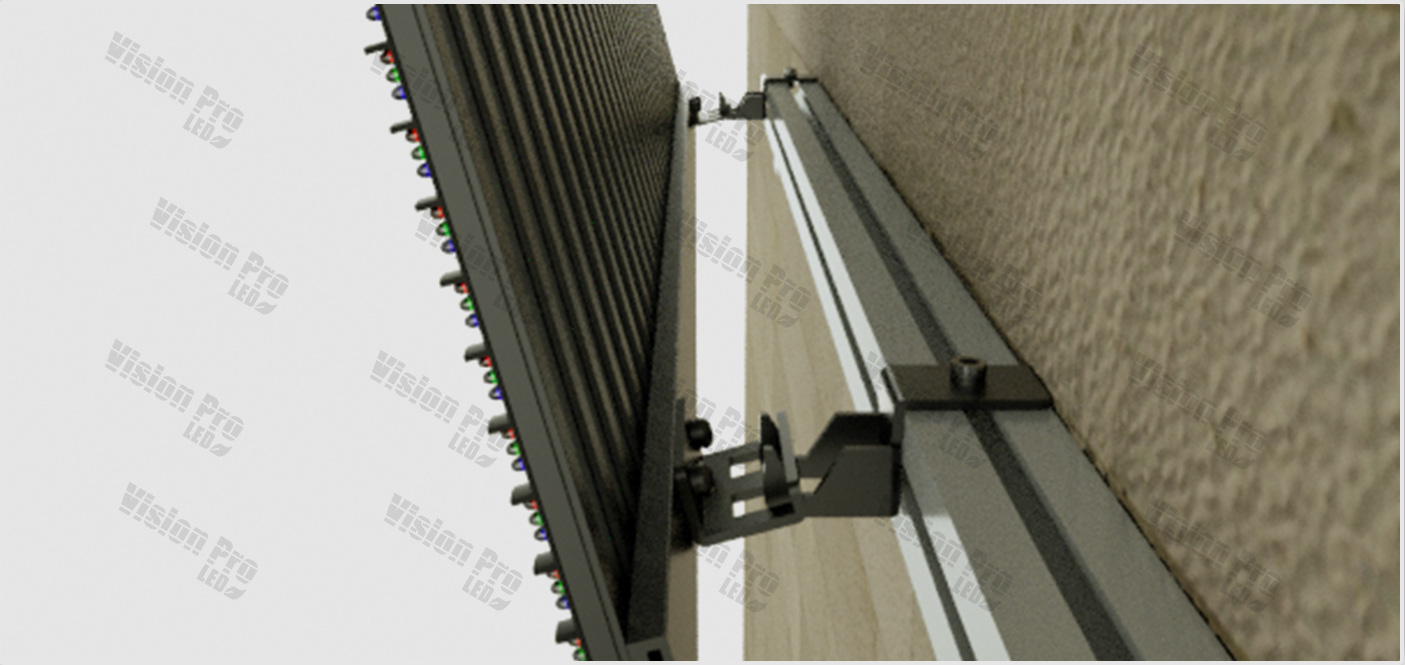

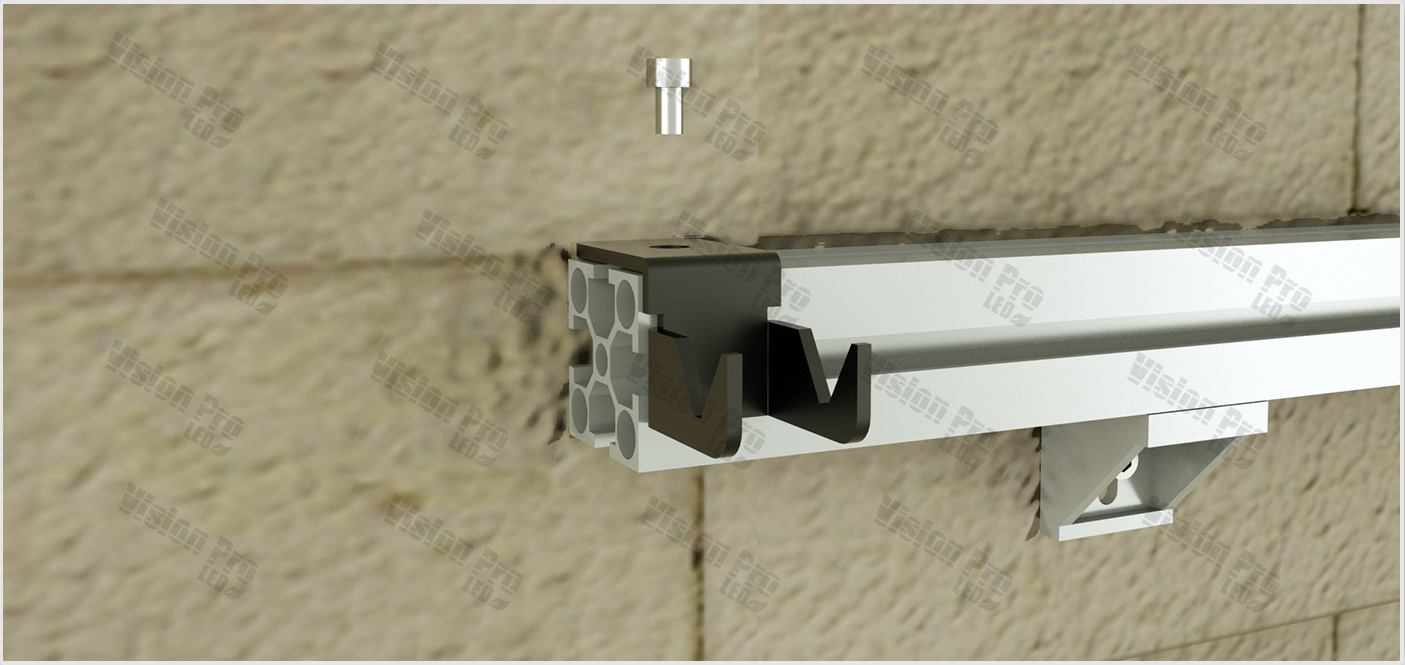

Our lock system allows for easy installation on the aluminum substructure.

The full aluminum materials and hollowed-out design make the cabinet to be lightweight, around 7KG/sqm. And by using ultra-small power supply and micro controlling slave card, the cabinet thickness is very thin.

As a result, it is easy to install and dismantle the curtain screen on a high building facade.

/
02

IP67 & All-weather bearable

MFC is a IP 67 rated outdoor product that is built to withstand adverse weather conditions.                                With a wide working temperature -30℃ to 80℃, the led strip curtain can work well in the extreme cold or hot weather.

03

Super high brightness

MFC series feature DIP LEDs which have a brightness of 10,000 Nit to ensure your display looks pristine in direct sunlight.                                Thanks to using High brightness DIP 1R1G1B as one pixel, it can get super high brightness of 10,000 nits (cd/m²).  Meanwhile, by adopting the static scanning and low-energy technology, MFC can show high brightness videos without consuming as much energy as the traditional led display.                                In most situations, 7,000 nits is enough. But for the special areas with too strong direct sunlight, the video can not be seen without 10,000 nits.

04

Front service available

For any pitch led strip curtain, full front service including front installation and front maintenance is available. When you have not big space on the back for installation or the curtain wall is over the glass or window, the front service led curtain screen gives you the opportunity to make it into reality.

05

Without heavy steel structure

The slim profile of the MFC LED panel offers creative and artistic benefits in almost any commercial application.                                Because of its lightweight and easy-installation structure, it doesn’t need to make a heavy and complex structure to support the curtain screen.                                When you build any media facade, the cost not only includes the led mesh screen, but also the support frame, shipping and installation cost.                                A simple structure undoubtedly can save you much cost from shipping to installation.

06

Lower energy consumption

The high brightness gold-wire led lamps and the PFC high-efficiency power supply both help the led curtain reduce the power consumption.Only MAX 400W per sqm, Average 120W per sqm

07

Easy Installation

Our lock system allows for easy installation on the aluminum substructure.                                The full aluminum materials and hollowed-out design make the cabinet to be lightweight, around 7KG/sqm. And by using ultra-small power supply and micro controlling slave card, the cabinet thickness is very thin.                                As a result, it is easy to install and dismantle the curtain screen on a high building facade.

01

Transparent led mesh curtain

One of the main advantages of the led mesh screen is transparency.                                LED displays are up to 68% transparent and can be placed on the outside of a window without sacrificing natural light in your space.                                It can let the wind go through. Furthermore, by adopting aluminum materials. It has very good heat dissipation. No-airconditioner is available even for a large-scale thousands square meters led curtain wall.                                Meantime, the transparent led screen makes good use of the natural light.

MFC SERIES DISPLAY

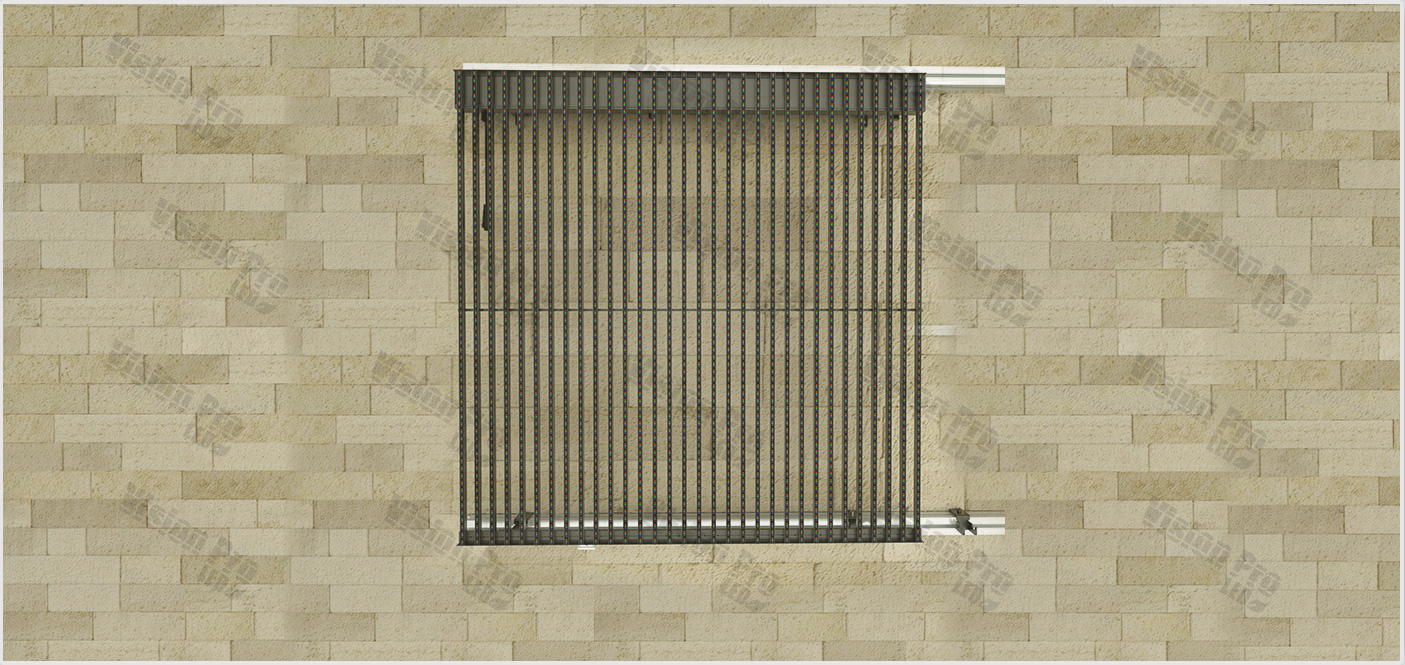

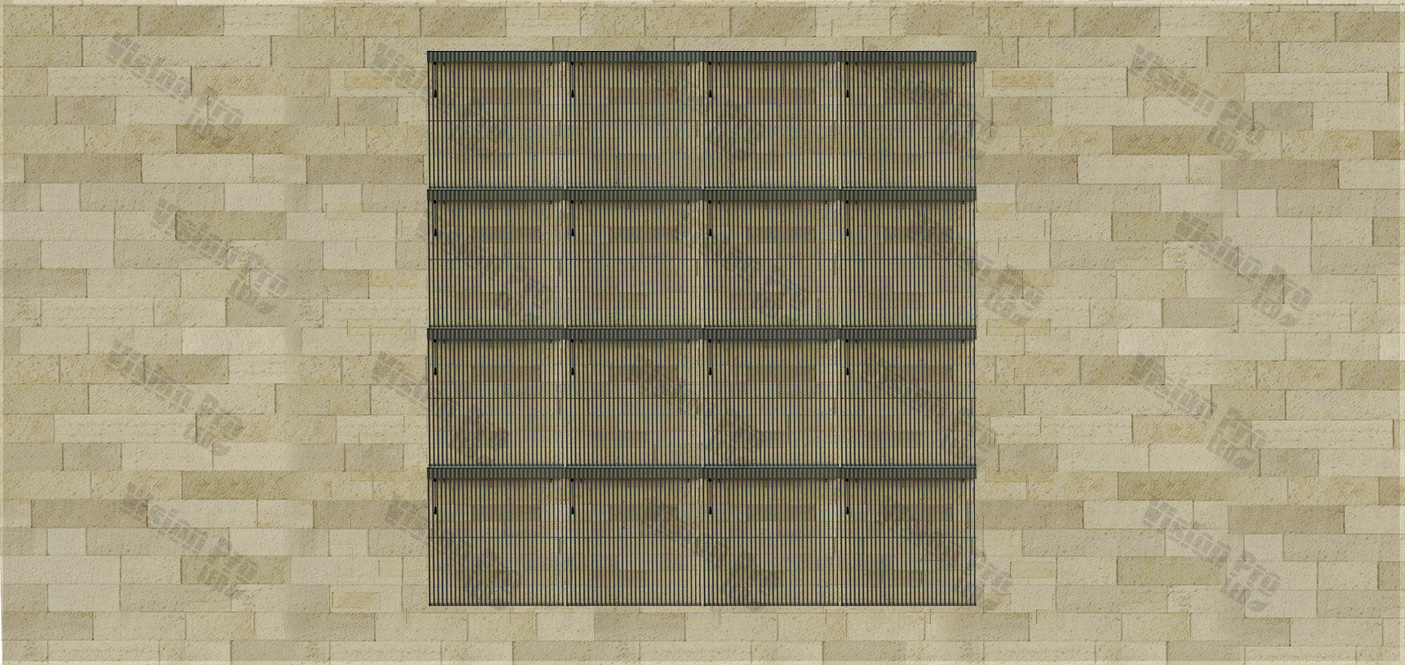

INSTALLATION

PRODUCT PARAMETERS

ModelMFC 15.625-15.625MFC 15.625-31.25MFC 31.25-31.25
Pixel Pitch (mm)V:15.625 H:15.625V:15.625 H:31.25V:31.25 H:31.25
Pixel Density (dot/m)409620481024
LED TypeDIP 1R1G1B
Panel Size (W x H)mm1000X1000 or 1000X2000
Panel Resolution (W x H)64X64 or 64X12864X32 or 64X6432X32 or 32X64
Panel Weight (Kg)14kg/sqm
Power Consumption  (W)MAX:200-400W/sqm
Driver Mode (Scan)static
Brightness (cd/m2)8000-12000 nits
Refresh Rate (Hz)≥1920
Viewing AngleDegree: H160°
Degree: V  120°
Mini View Distance (m)15
Use Temperature(℃)Use Temperature-25℃~75℃
Storage  -20℃~55℃
Input Voltage110VAC-220VAC
Failure Rate<1/50,000
Control TypeUSB \ Network \ Wifi optional
Life Time (hrs)100,000
ProtectionIP 67
