Transparent LED display, also known as LED glass screen, is mainly used for architectural glass curtain wall. Vision Led Pro offers perfect solutions with our series of products for indoor events, outdoor advertising and more applications.
TZ Series Transparent LED Display
Unlike traditional LED displays, Transparent LED Display is a micro-innovation, from SMT manufacturing process, led encapsulation, control systems which have been targeted improvements, and coupled with the hollow design of the structure, reducing the structural member block the line of sight, so that to maximize the perspective effect and meet with the end customer's requirement that would like to maintain the visibility behind the LED display.
Nowadays, many malls and shops want to show off inside their venues to demonstrate their products and brand awareness and get passers-by involved in a new shopping experience. There is no doubt that a transparent LED display is a perfect option.
High Transparency
From 60% to 90% transparency rate could keep the internal natural lighting and viewing.
Light Weight
Only 10mm thickness of pcb board and 12kg/sqm light weight make easy to install transparent led screen in small space.
High Brightness
High brightness of up to 6500nits ensures perfect visual performance for indoor & outdoor transparent led display.
Creative

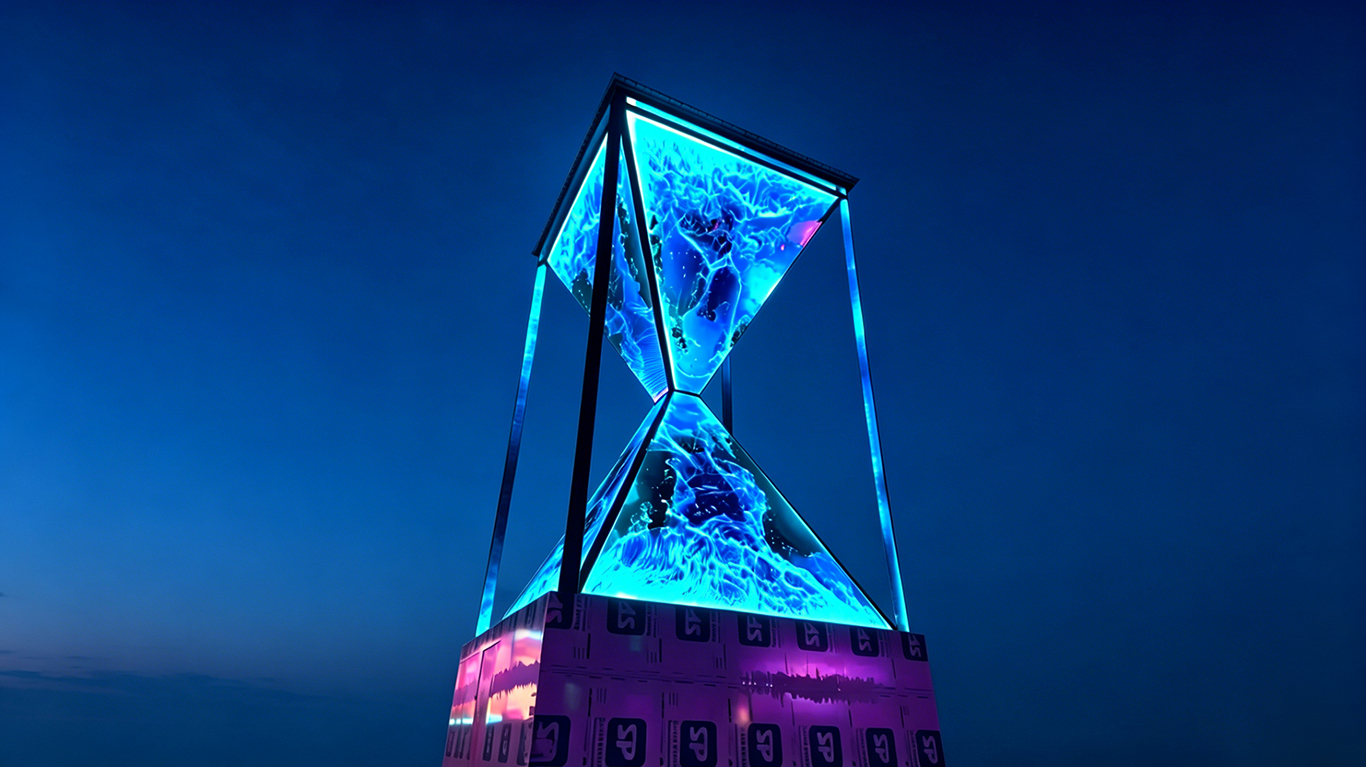

Vision Led Pro can make the transparent led display into various shapes like cuboid, cylinder, etc. to meet special requirements.
Easy Maintenance
Require replacement of single modules without taking entire led panel—all in one design, easy to do front and back maintenance.
Smart Control
Take control of your transparent led screens with Wifi, APP, and Cloud controlling management.
TO series has the advantages of high transparency, high protection level, light weight, easy installation and maintenance, etc. Specially designed for outdoor using, and can be quickly assembled and disassembled to meet the needs of various application scenes.
Transparent LED Screen Specifications
| Items | TO-3 | TO-5.2 | TO-10 | TO-15 |
| Pixel Pitch (mm) | P3.91-P7.82 | P5.2-P10.4 | P10.4-P10.4 | P15.6-P15.6 |
| Pixel Density (dot/㎡) | 32768 | 18432 | 9216 | 4096 |
| Brightness | 6500 nits | 6500 nits | 6500 nits | 8500 nits |
| Transparency | 55% | 58% | 58% | 72% |
| Cabinet Materials | Die Casting Aluminum | |||
TZ series is an adhesive LED Display that can be isntalled on both new and existing transparent surfaces, or hung as a decorative digital feature. This product is the perfect solution for breathing new life into glass facades, show rooms, exhibitions, shopping malls, museums, retail advertising, commercial sapces, indoor decoration and many more applications.
Transparent LED Screen Specifications
| Items | TZ-2 | TZ-3 | TZ-7 | TZ-10 |
| Pixel Pitch (mm) | P2.6-5.2 | P3.91-P7.82 | P7.82-P7.82 | P10.4-P10.4 |
| Pixel Density (dot/㎡) | 73728 | 32768 | 16384 | 9216 |
| Brightness | 1000-5500nits, customized | |||
| Transparency | 55% | 65% | 70% | 80% |
| Refresh Rate | 1920HZ or 3840HZ | |||
| Cabinet Materials | Die Casting Aluminum or Aluminum Alloy | |||
| Application | Glass Wall, Glass Window, Retail Shop, Indoor Mall | |||
TC series is with brilliant ultra-light designing, super high transparency and admirable performance, easily fit almost any indoor architectural structures, TC series transparent led video wall have been meticulously engineered to deliver exceptionally true colors with ultra-high contrast ratio and up to 5,500 nits of brightness, ensuring optimum image quality even in bright sunlight conditions. With up to 86% transparency almost invisible from 5 meters away, which makes it the ultimate choice for glass facade and window display applications.
Transparent LED Screen Specifications
| Items | TC3 | TC7 | TC10 |
| Pixel Pitch (mm) | P3.91-P7.82 | P7.82-P7.82 | P10.4-P10.4 |
| Pixel Density (dot/㎡) | 32768 | 16384 | 9216 |
| Brightness | 6500 nits | 6500 nits | 6500 nits |
| Transparency | 82% | 85% | 87% |
| Refresh Rate | 1920HZ or 3840HZ | ||
| Cabinet Materials | Aluminum Alloy | ||
| Application | Glass Wall, Glass Window, Retail Shop, Indoor Mall | ||
Traditional LED window displays act as a dark wall, so shoppers can't see in, and they block sunlight, so your indoor areas need to rely on unnatural lighting. After micro-innovation, the hollow design of the structure, reducing the structural member block the line of sight, maximize the perspective effect, so that to offer your indoor shopping space the best of both worlds: natural sunlight can go through for a pleasant indoor shopping experience, while outdoors passers-by can see in. A larger vertical pixel pitch makes the screen transparent; a tighter horizontal pixel pitch gives the screen a good enough definition for the audience's nice content.
If there is no direct sunlight around the transparent led display, and the viewers walk and stay indoors, the suggested brightness will be 1200 nits.
If audiences walk and stay outdoor, and there have direct sunlight on the led display, customer have to use high brightness (5000-6000nits).
A transparent LED screen offers appealing, unique, and cost-effective use. These features come from its unique design that helps regulate power consumption better. Have a look at how the transparent LED screen works.
The transparent led display has units of the pixel that determine output quality. The light-emitting diode makes up the pixel results in these screens. The transparent led display screens are an enhanced version of standard LED screens.
These transparent LED displays have a thickness of about 1mm, making them very sleek and allowing them to blend into their environment easily. The glass plates also have a standard distance of 5 μm intervals on each section with liquid crystal material lined up on the screens.
You might find these transparent LED display screens used in a wide variety of places. Here is a breakdown of some uses for LED screens.
1. Building glass wall, city landmark high-rise.

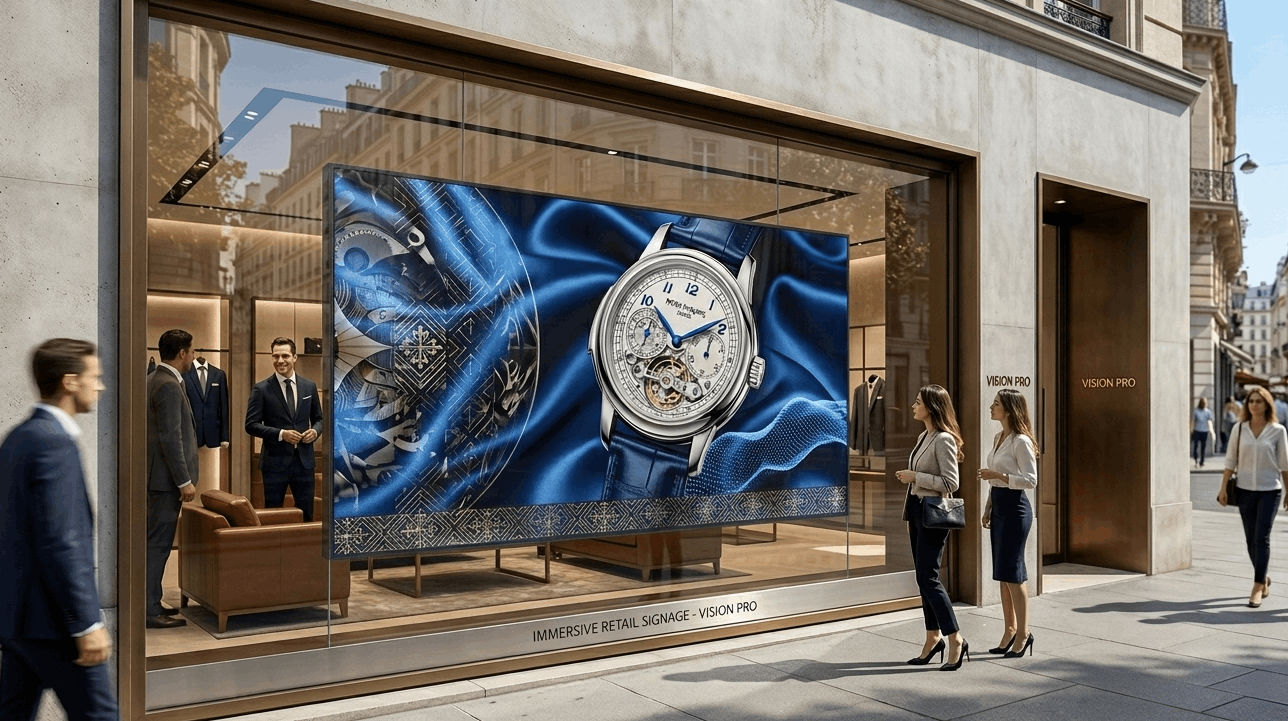

2. The glass windows of the shops along the street.
3. Glass windows for banks, real estate, auto 4S shops, etc.
4. Subway exit
5. Lighting project: along the river guardrail, high-rise buildings can be used only by sticking to our company’s membrane screen.
6. Interior decoration: decoration of various brand stores in large shopping malls, demonstration wall of exhibition halls on each floor, usually used to decorate glass, and guests can play video demonstrations.
What makes transparent LEDs different from the rest is their multi-faceted technological innovation that isn't a technical improvement rather, it is a trend that is taking on the world like a storm. Their advanced technical support guarantees energy saving, product quality and environmental protection.
But, the thing that always makes potential buyers confused about their selection is the availability and surety of getting the required set of features. They aren't sure about how to come up with the best transparent LED screen, no matter how many options they come across. So, to solve this confusion, here are a few important tips that can help to get into a win-win situation in finding the ideal transparent LED. Read More >>
Our modular panels snap together easily without the need of complicated tools. Power supplies are built into the supporting frame, which make it easier and faster to install, and displays can be hung or mounted. You’ll find that setup time is amazingly quick.
