Advantage
Stick on Glass Installation
Ultra Thin & Ultra Light&Extremely High Transparency
High brightness and Contrast
Customized size
Support Whole Frame Design- Plug and Play
No Splicing Structure & Nice Image Quality
Multiple Installation Method
HG Series is a transparent LED display, this technology creates the illusion of 3D holograms using LED panels, without requiring special glasses or additional viewing devices. This product is installed behind the glass facade, suitable for retail, offices, entertainment venues for advertising and more applications.

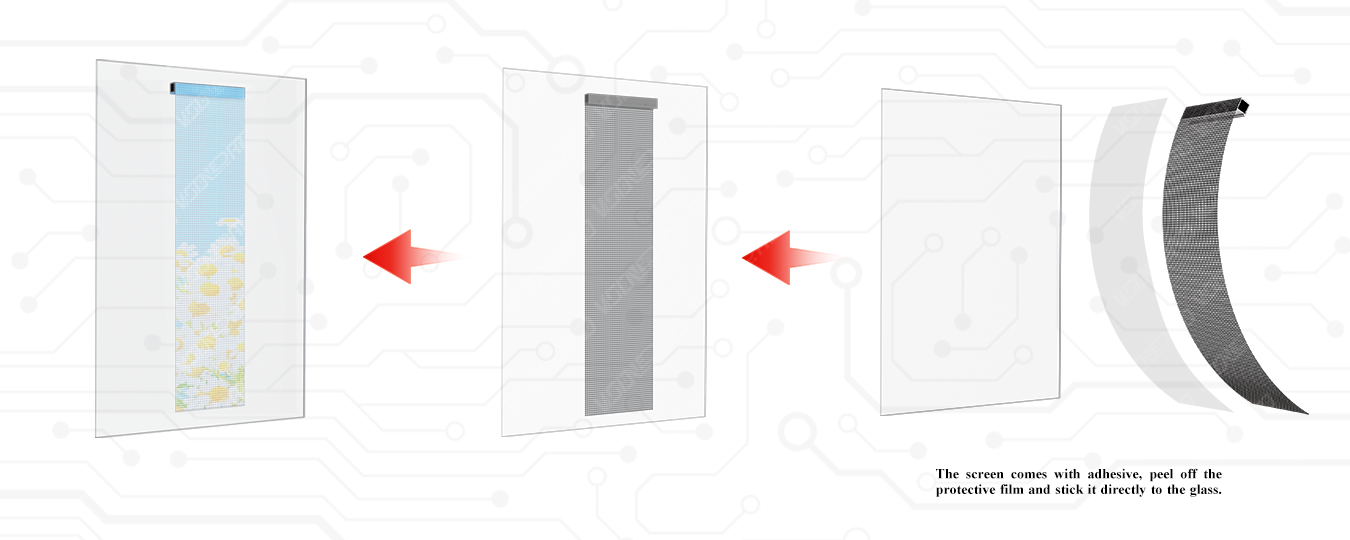

Stick on Glass Installation
Ultra Thin & Ultra Light&Extremely High Transparency
High brightness and Contrast
Customized size
Support Whole Frame Design- Plug and Play
No Splicing Structure & Nice Image Quality

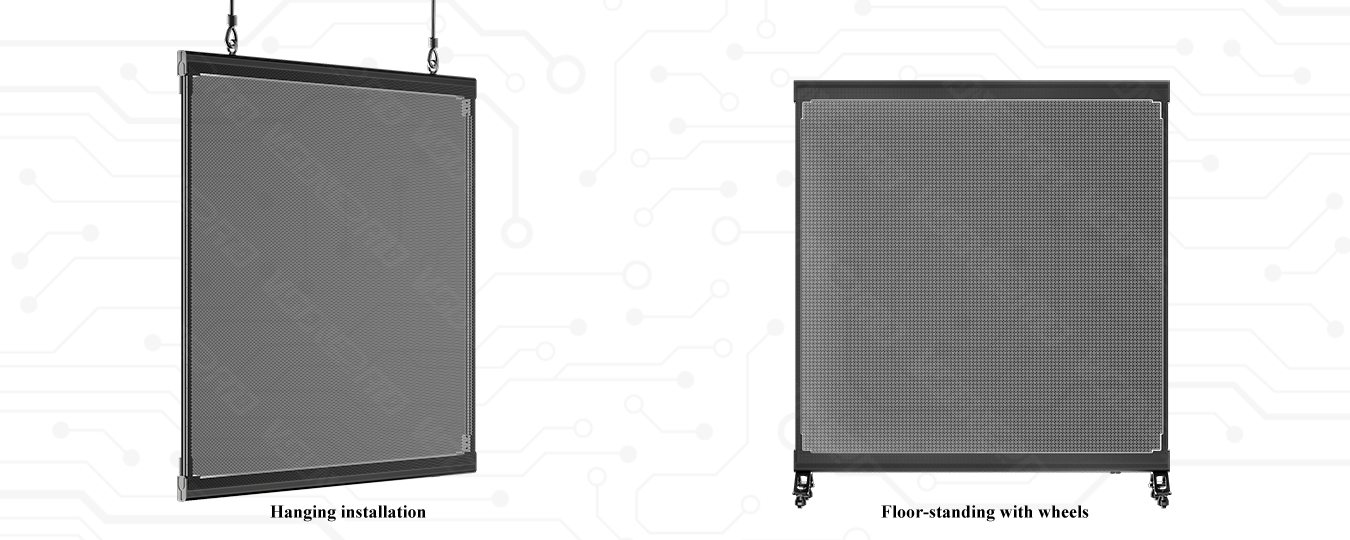

Multiple Installation Method

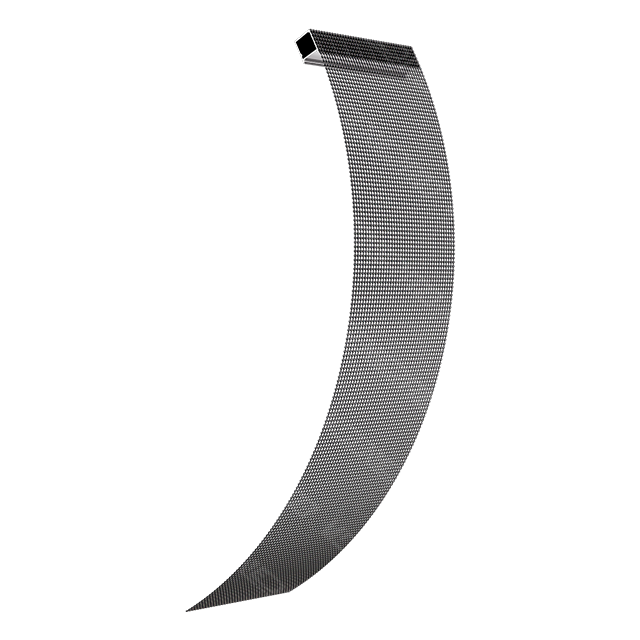

Standard modules can be bent, and used flexibly.
The best partner for curved glass and special-shaped screen. One single LED module height max. is 1.5m high, can create a 3m high screen without any visible bar in the middle of the whole screen which create amazing high transparent LED display effect.

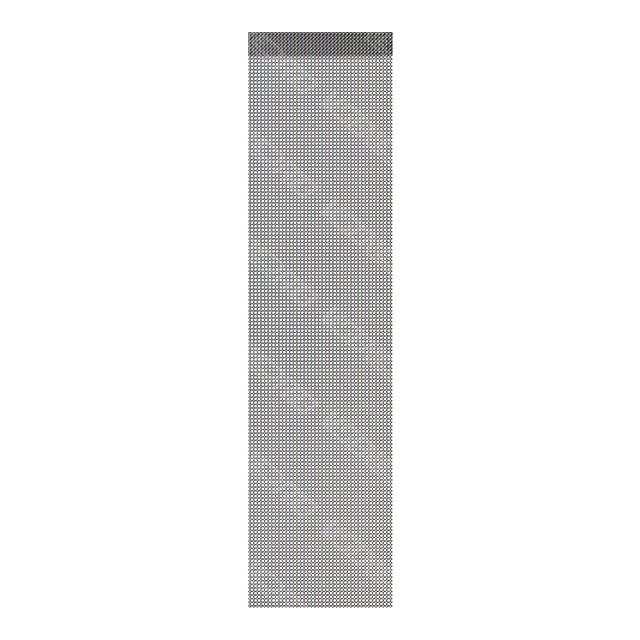

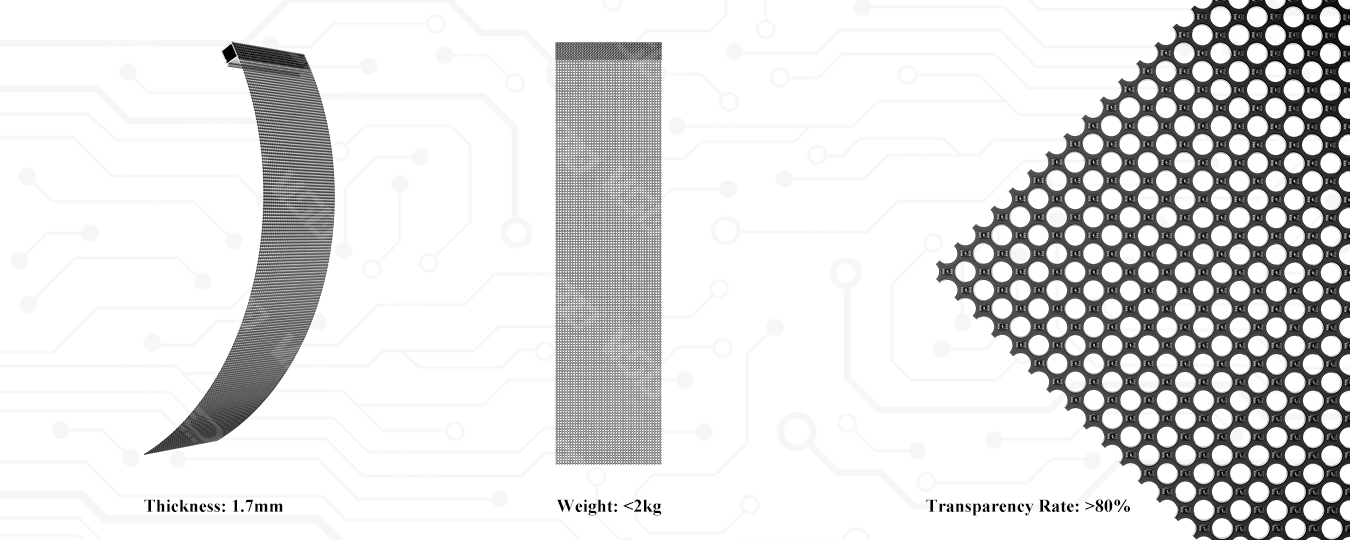

The panel is only 1 .7mm thick and weighs less than 2kg. more than 80% transparency, absolutely unobstructed views, maintains visibility through the screen, allowing natural light and clear sight-lines. Showing dynamic content while keeping the environment visible.

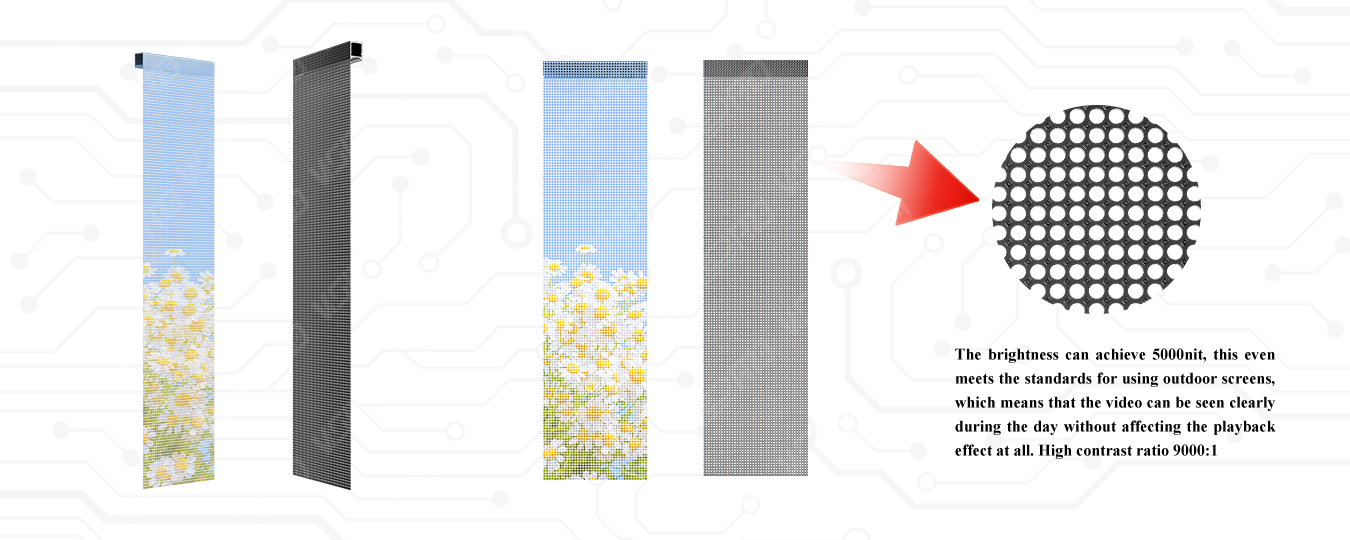

The brightness can achieve 5000nit, this even meets the standards for using outdoor screens, which means that the video can be seen clearly during the day without affecting the playback effect at all. High contrast ratio 9000:1

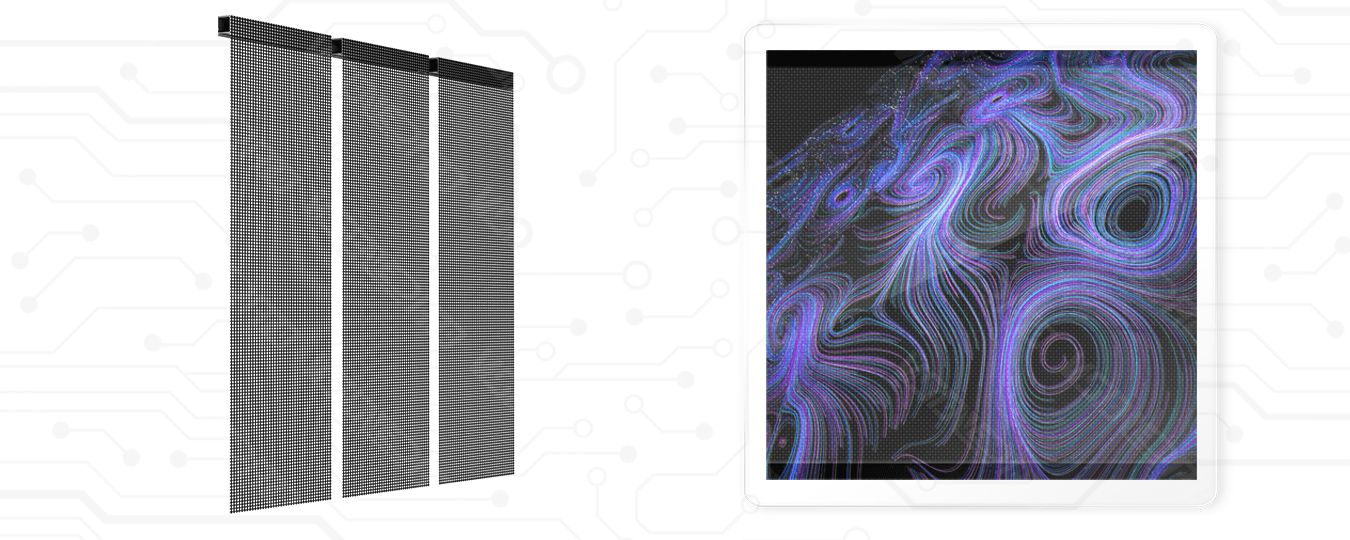

Modular panels but seamless splicing, no visible gaps or bezels between panels, ensuring a smooth, uninterrupted image. Refresh rate is 3840HZ, high-definition by showing wonderful images with 14-16 bit grayscale, these screens are perfect for dynamic displays.

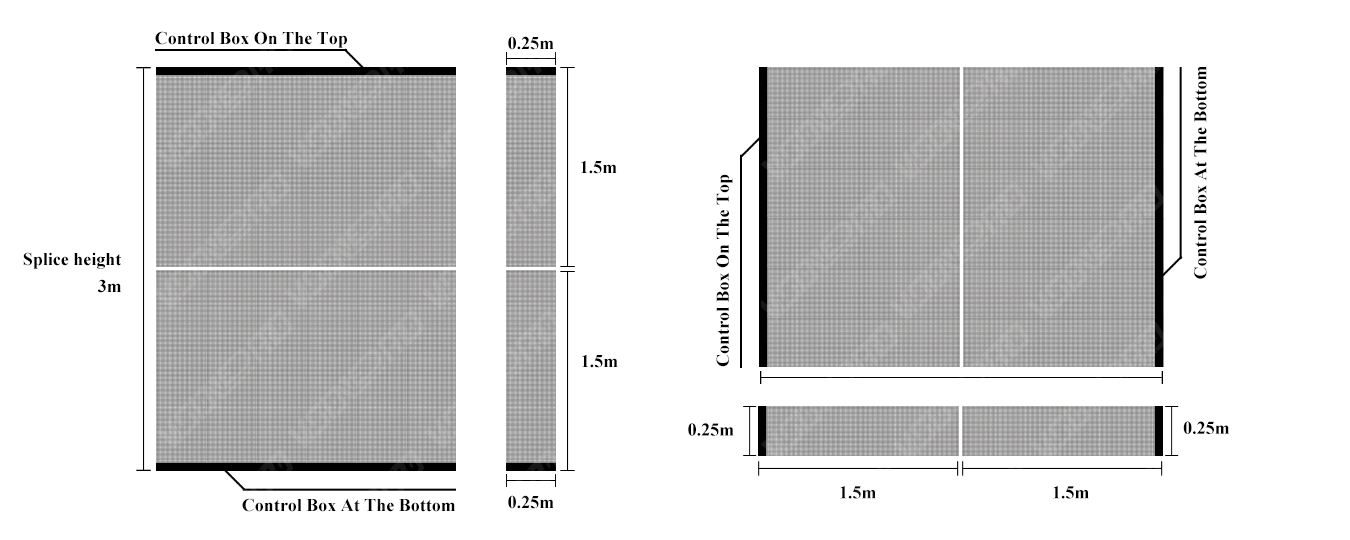

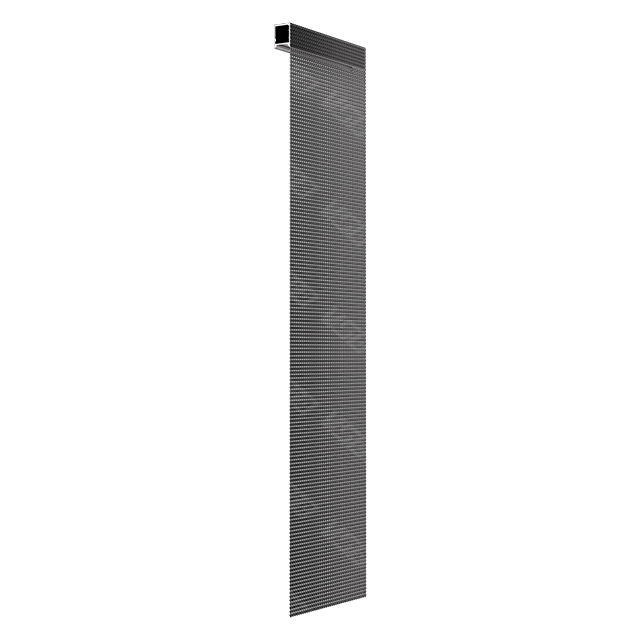

One Single LED Module height Max. is 1500mm, can create a 3m high screen without any visible bar in middle of the whole screen, which create amazing high transparent led display effect.

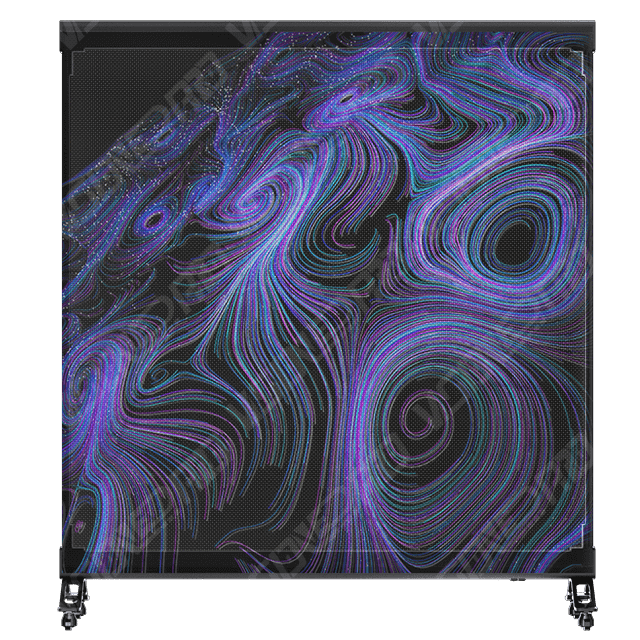

No technical expertise needed for HG Poster, making it accessible for all users. Easy to move and installation, no need for assembling and complex setup required, simply connect and start using the display. Good time-saving, it reduces installation and configuration time, improving efficiency.
Items | HG-2 | HG-3 | HG-6 |
Pixel Pitch (mm) | 2.5 | 3.91 | 6.25 |
Pixel Density (dot/㎡) | 160000dot/ m² | 65536dot/ m² | 25600dot/ m² |
Display size(mm) | 125* 1000 | 250* 1000/250* 1175/250* 1475 | 1250* 1175/250* 1475 |
Panel Splicing for Large-Screen Integration | 125* 1000 | 250* 1000/250* 1175/250* 1475 | 1250* 1175/250* 1475 |
Brightness | 1200 | 4000 | 5000 |
Weight (kg/set) | 1.65 | 1.6 | 1.6 |
Max .Power | 600W/m² | 800W/m² | 800W/m² |
Ave. Power | 200W/ m² | 267W/ m² | 267W/ m² |
Transparency | ≥70% | ≥80% | ≥85% |
Scan | Single point single control, static drive | ||
| Led Control System | Synchronous/Asynchronous | ||
| Operation Power | AC 100-240V 50-60Hz | ||
IP Rating | IP 20 | ||
| Gray Scale | 14-16 bits | ||
| Work Environment | Working Temperature:-20℃ ~ 50℃ Working Humidity:20%-85% RH | ||
| Life | 10 ,0000H | ||
Over 7 years of development, Vision Pro grow up to be a professional LED display solution provider who makes the product apply extensively in the event, concert, advertising media, meeting hall, stage, stadium, and other relevant fields.
