LED Screen for Stage - E series

The new generation E series is a special design for small pixel pitch led video wall for your stage, high refresh rate and gray level bring an excellent visual performance in your application. Smart locking system and lightweight cabinet make sure fast assembly & dismantle requiring only a single technician.

LED Screen for Stage - E series
LED Screen for Stage - E series
LED Screen for Stage - E series
LED Screen for Stage - E series

Advantage

  • High precision aluminum cabine

  • High refresh rate and high gray level

  • A lightweight and ultra slimline design

  • Fully front or rear maintenance

  • One man install/uninstall

  • Integrated power & signal unit

  • P2.6/P2.97/P3.91 Led Module & Panels & Screens available

Product Detail

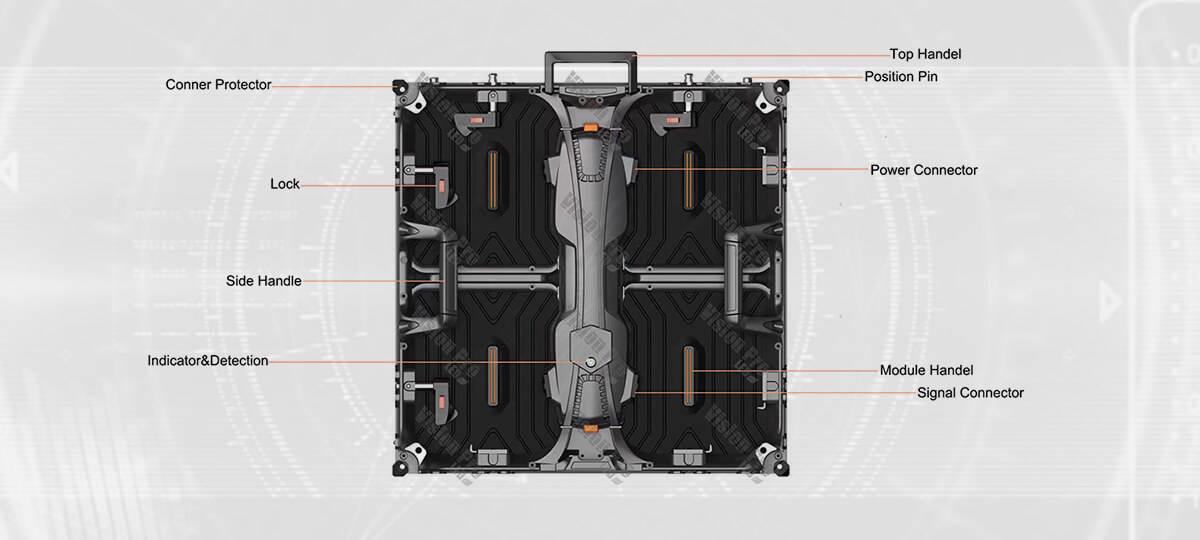

High Quality Frame

First class design for die casting cabinet frame, each cabinet (include all components) is only 7 kg , four sets strong fast lock to make assembling to be easier.

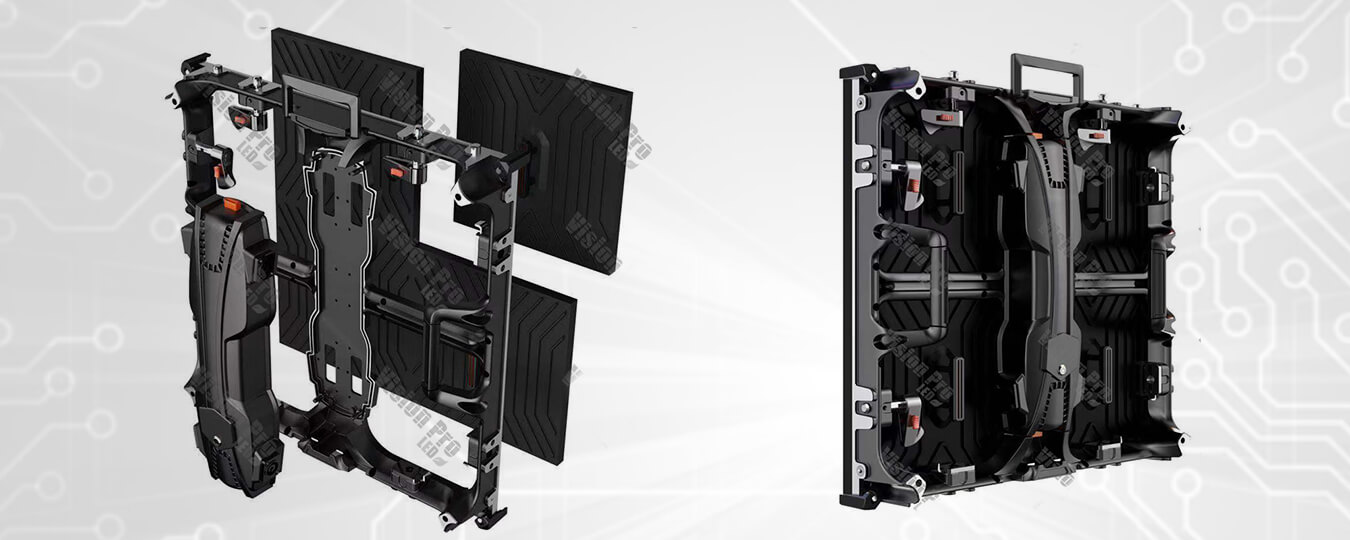

Easy Maintenance

Cable-less design; Integrated power& signal box can be changed in one second, front&rear maintenance by magnetic modules

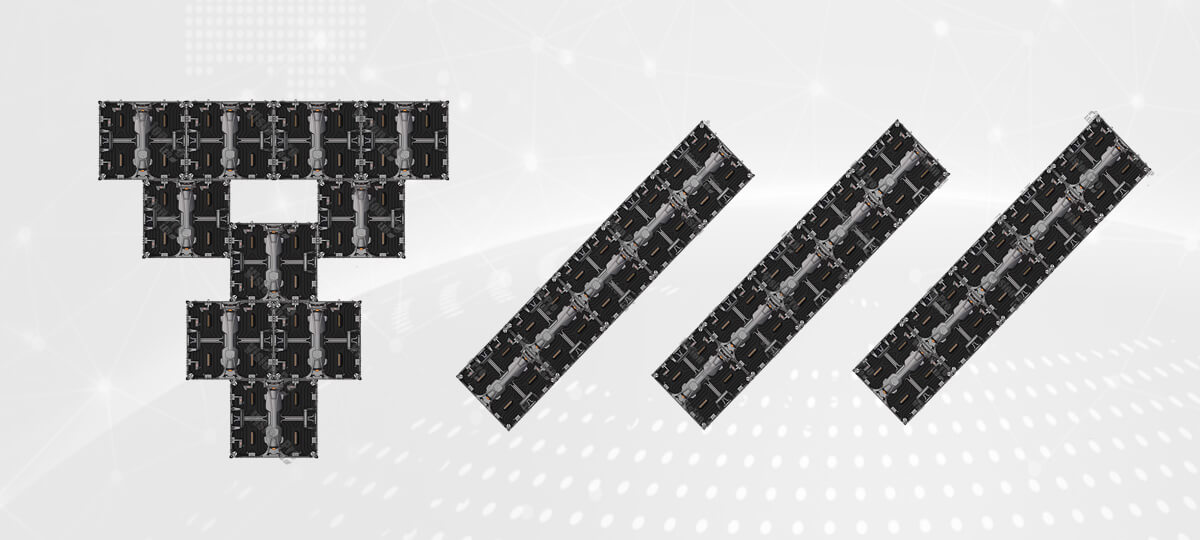

Versatile Installation

Special shape assembling is supported by our cabinet


Great color performance in low gray level

With a unique algorithm to maintains R/G/B gradation and delivers precise, detail-rich hues in low-brightness indoor environments


Super Visual Performance

1920HZ-3840HZ refresh rate ensure best performance when camera shooting

Technical Parameter

Items

EI-2.6

EI-2.9

EI-3.9

Pixel Pitch (mm)

P2.6

P2.97

P3.91

LED

SMD1515

SMD1515

SMD2020

Pixel Density (dot/㎡)

147456

112896

65536

Module size (mm)

250X250

Module Resolution

96X96

84X84

64X64

Cabinet size (mm)

500X500

Cabinet Materials

Die casting Aluminum

Scanning

1/32

1/28

1/16

Cabinet Flatness (mm)

≤0.1

Grey Rating

14 bits

Application environment

Indoor

Protection Level

IP45

Maintain Service

Front & Rear

Brightness

800-1200 nits

Frame Frequency

50/60HZ

Refresh Rate

1920HZ or 3840HZ

Power Consumption

MAX: 200Watt/cabinet   Average: 60Watt/cabinet

Standard Accessories

Sending card or sending box

Sending card or sending box

Video processor

Movable power cabinet

Hanging beam

Flight case

Power cable

Signal cable

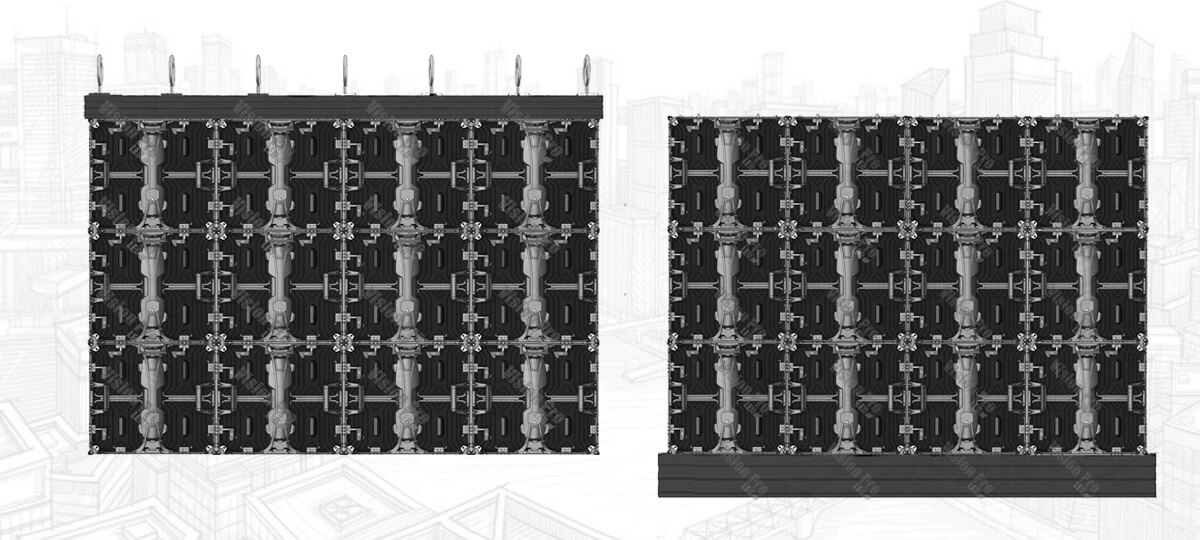

Hanging installation & Stack installation

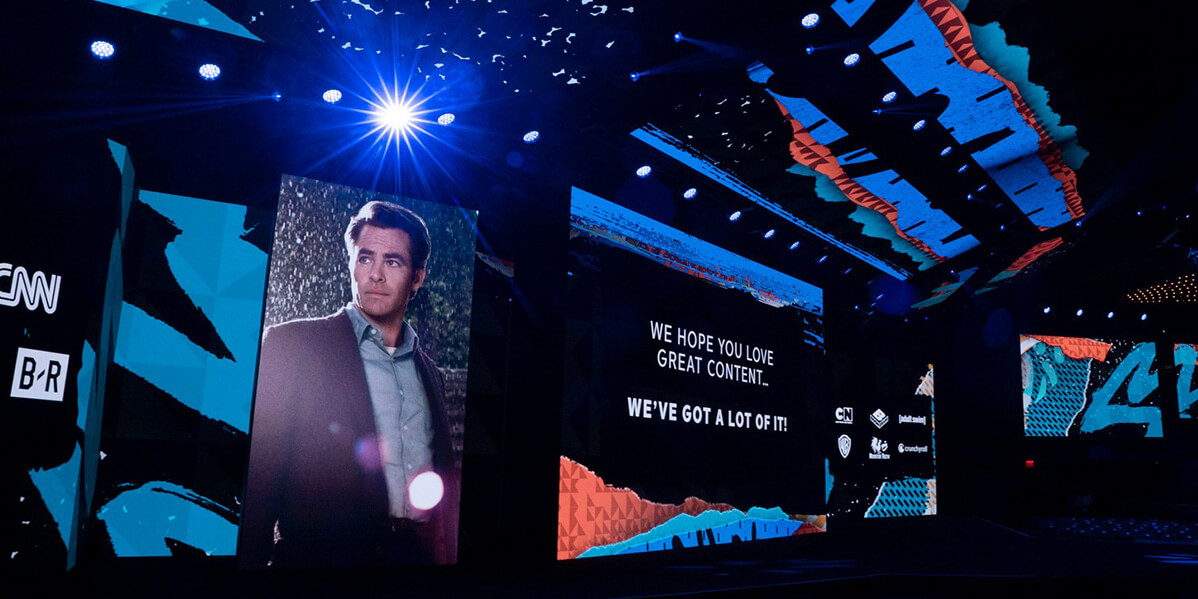

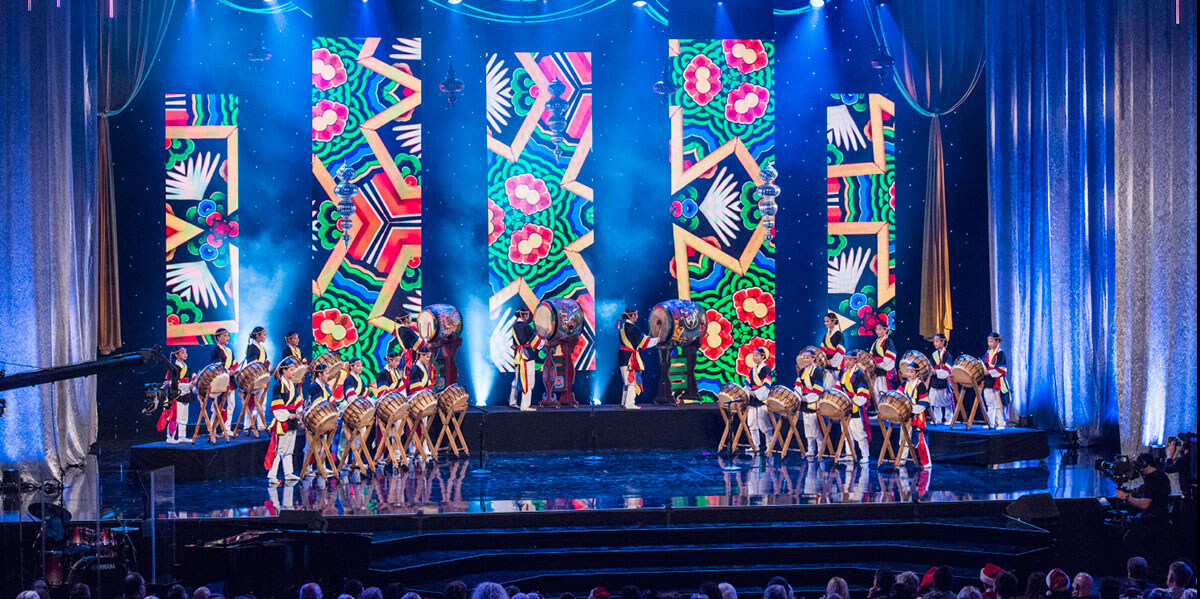

Application
