Ultral Thin Indoor Fixed LED Display Video Wall - U Series

Our U series is designed specifically for indoor fixed led wall markets, this panel are light weight and slim but durable, equiped with user-friendly feartures like full front maintenance, no frame installation design

Ultral Thin Indoor Fixed LED Display Video Wall - U Series
Ultral Thin Indoor Fixed LED Display Video Wall - U Series
Ultral Thin Indoor Fixed LED Display Video Wall - U Series
Ultral Thin Indoor Fixed LED Display Video Wall - U Series

Advantage

  • Mount it on the wall directly without installation frame

  •  Maintain parts such as module &power supply&cards in front of LED wall easily

  • Assemble quickly with simple inner cable connection

  • Three size options: 1000X250mm 750X250mm 500X250mm

  • Neat Appearance

  • Front maintenance by magnetic suction tool

  • 90 degree spicing

Product Detail

Full Front Maintenance

Can be front maintenance by magnetic suction tool,  Maintain parts such as module &power supply&cards in front of LED wall easily


Multiple measurement

Three different panel size, more options for your project application.


Column Splicing

Cabinet is with 45 degree angle design, realize 90 degree splicing


Versatile Installation

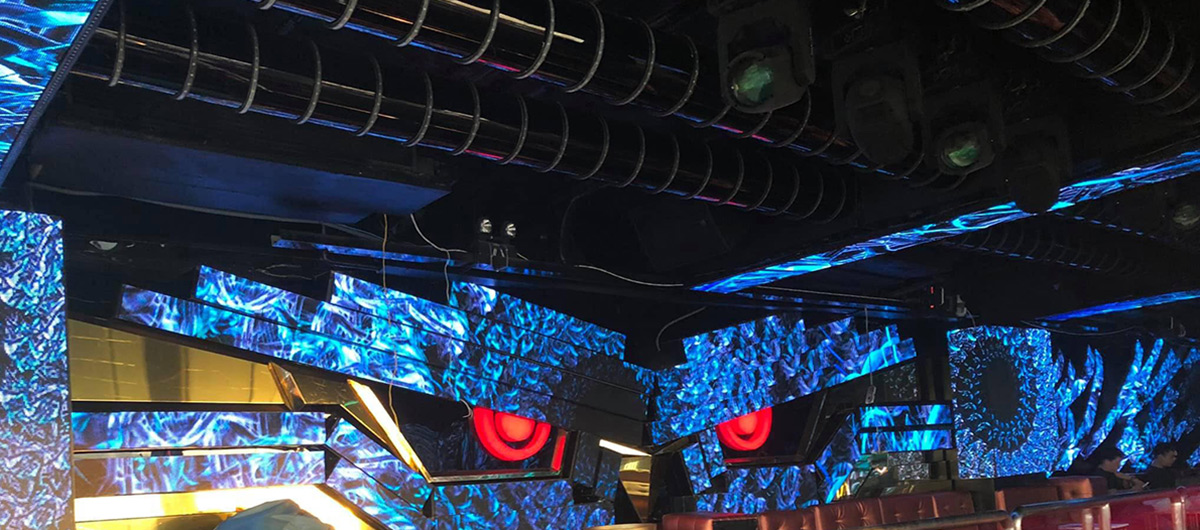

Special shape assembling is supported by our panel, make your video wall to be more attrative



Technical Parameter

Items

U-2.6

U-2.9U-3.9

U-4.8

Pixel Pitch (mm)

P2.604

P2.976P3.91

P4.81

LED

SMD2020

SMD2020SMD2020

SMD2020

Pixel Density (dot/㎡)

147456

11289665536

43264

Module size (mm)

250X250

Module Resolution

96X96

84X8464X64

52X52

Cabinet size (mm)

1000X250mm; 750mmX250mm; 500X250mm

Cabinet Materials

Die casting Aluminum

Scanning

1/32

1/281/16

1/13

Cabinet Flatness (mm)

≤0.1

Grey Rating

14 bits

Application environment

Indoor

Protection Level

IP45

Maintain Service

Front Access

Brightness

800-1200 nits

Frame Frequency

50/60HZ

Refresh Rate

1920HZ or 3840HZ

Power Consumption

MAX: 800Watt/sqm;  Average : 240Watt/sqm

Wall Mounted


Application
