Rear and Front Rental LED Display Maintenance Guide

An LED display is the best way to get attention to your company or brand. Today's LED displays are far better than the customary printed materials, with vivid displays, bright colors, and crystal-clear images.

These LED screen displays do break down or may require maintenance at some point.

As a result, the use of rear access and front access is required for different applications and practical needs to faster and better solve led screen problems. Of course, technical assistance is also required.

Whenever you need rental LED displaysensure it is from a reputable supplier.

Front Maintenance

Front maintenance refers to inspection and servicing performed from the front side of the LED display cabinet. This method is especially critical in scenarios where the screen is wall-mounted or embedded into a structure, making rear access impossible. For example, LED screens installed on building facades must include a front-access system because technicians can’t reach the back once the display is mounted.

There are three designs for front maintenance:

1. Front screws system

In this system, the LED plates and modules are connected to the cabinets via front-mounted screws.

Although it is slightly more laborious to install, this system is quite safe, ideal, and reliable for outdoor installations.

2.Lock mechanism system

In this event, the LED modules are linked to its structural LED cabinets via a basic lock-like opening and closing system.

There are openings on the front where a key can be inserted and turned to release the LED module.

3.The magnetic system

This new front maintenance system is currently being implemented more in front access LED display screens.

It eliminates the need to dismantle the wire, allows for faster maintenance, and disassembly is relatively simple and more convenient.

To consider removing it from the front, simply use a suction cup tool to lift the magnet LED module away from the front of the screen.

Advantages of front-end maintenance

One major benefit of front maintenance is the slim design it enables. LED cabinets can be made thinner and lighter. This saves space and makes installation easier. It’s especially helpful in environments where room is limited.

Indoor setups benefit the most. Screens can blend into walls, panels, or existing structures. There’s no need to leave space behind the screen. This allows for clean lines and a more professional look.

Maintenance is also quicker. Technicians can remove and replace modules directly from the front. No need to disassemble the entire cabinet. This speeds up repairs and reduces downtime—crucial for high-use displays.

Front-end maintenance scenarios

Front access designs are often used in places that demand compact setups and high visual performance. These include:

• Conference room LED screens

• Security monitoring centers

• Indoor command and control displays

• Small-pitch, high-resolution indoor displays

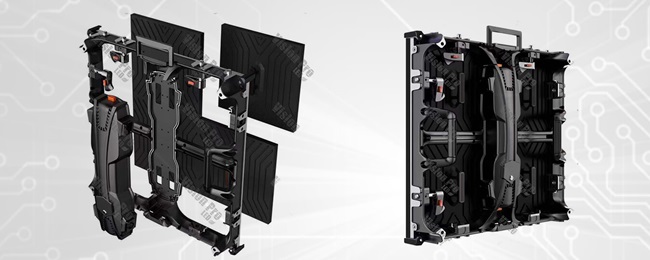

Rear maintenance

Maintenance is done from the back of an LED display cabinet, which has door-like openings and a door that opens with a key. The inner structure of the design is seen upon opening the LED display cabinet.

It is the most widely used system, and are found in a substantial proportion of both outdoor and indoor screens.

Advantages of rear maintenance

The cost is relatively lower, and the monitoring and maintenance are quick and easy.

It is not best suited for wall-mounted or inlaid installations since it cannot be fixed from the back.

Maintenance channels should always be designed for large LED displays mounted on the outside walls of a building so that maintenance workers can perform repairs and maintenance from the back of the LED screen.

Applicable scenarios for rear maintenance

This type of access is better suited for large-scale or freestanding LED displays, including:

• Roadside pole-mounted displays

• Rooftop LED billboards

• Large outdoor event screens

• Any setup with clear back access for service technicians
