LED Video Wall For Stage - SL Series

Our SL series offers Advanced, high-performance rental panels for indoor and outdoor applications. Designed specifically for touring & rental markets, the panels are lightweight and slim but durable, equipped with user-friendly features.

LED Video Wall For Stage - SL Series
LED Video Wall For Stage - SL Series
LED Video Wall For Stage - SL Series
LED Video Wall For Stage - SL Series

Advantage

  • High Precision Aluminum Cabinet with four sets fast locks

  •  Can be mixed Installation with S Series

  • A lightweight and ultra slimline design

  • Curved installation requirement is supported

  • One man install/uninstall

  • Wide Viewing angle and high refresh rate

  • P3.91/P4.81/P5.95 Led Module & Panels & Screens available

Product Detail

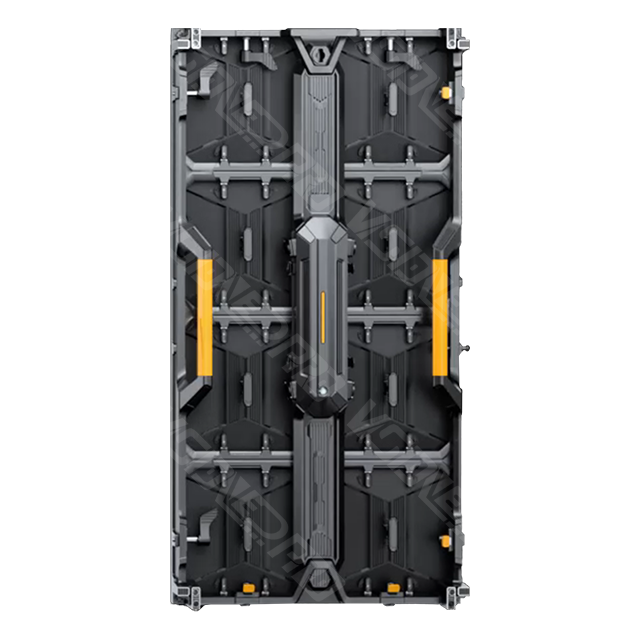

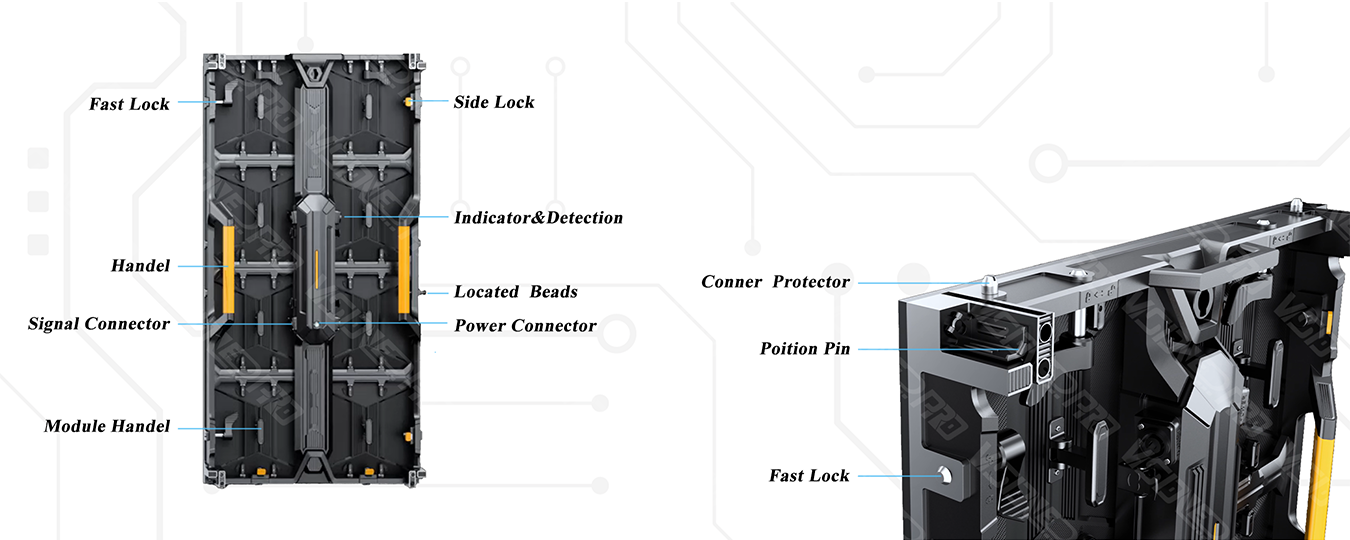

High Quality Cabinet

First class design for die casting cabinet frame, each cabinet (include all components) is only 12 kg , four sets strong fast lock to make assembling to be easier.

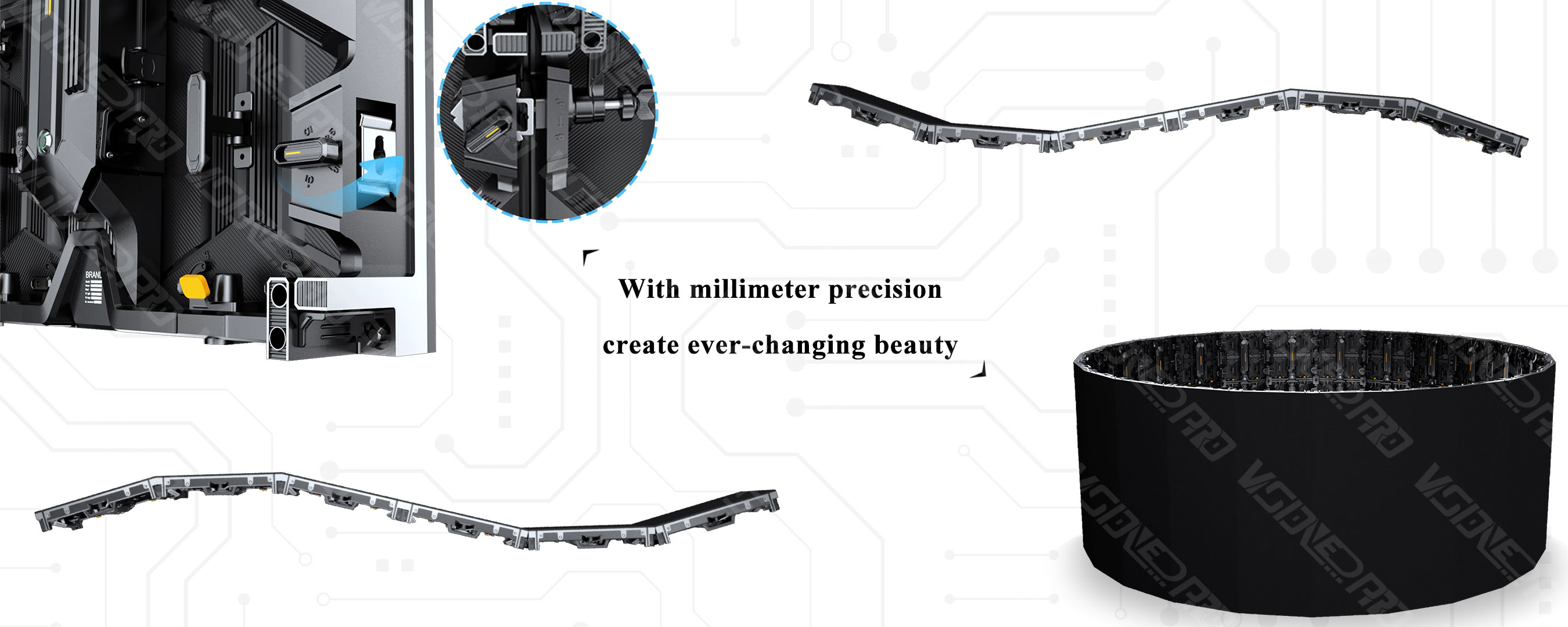

Creative installation, can add curved function according to different usages.

The proprietary design of side lock provides a super strong connection while keeping the curve option with convenience in operation, precision in connection. Upon customer's requirement, Any Angle between-15 to 15 degrees of curve can be easily customized by us.Curved-S1000.jpg

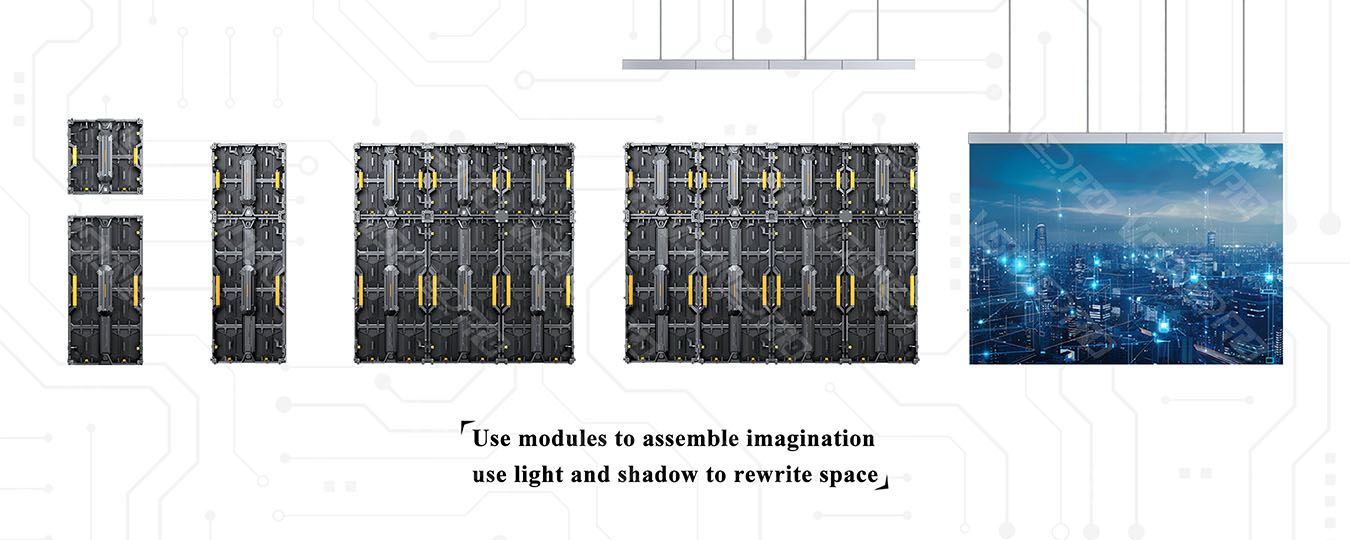

Supporting Mix Splicing

S & SL can be mixed splicing


Great color performance in low gray level

With a unique algorithm to maintains R/G/B gradation and delivers precise, detail-rich hues in low-brightness indoor environments


Technical Parameter

Items

SL-I-3.9

SL-I-4.8SL-O-3.9

SL-O-4.8

SL-O-5.9

Pixel Pitch (mm)

P3.91

P4.81P3.91

P4.81

P5.95

LED

SMD2020

SMD2020SMD1921

SMD1921

SMD2727

Pixel Density (dot/㎡)

65536

4326465536

43264

28224

Module size (mm)

250X250

Module Resolution

64X64

52X5264X64

52X52

42X42

Cabinet size (mm)

500X1000

Cabinet Materials

Die casting Aluminum

Scanning

1/16

1/131/16

1/13

1/8

Cabinet Flatness (mm)

≤0.1

Grey Rating

14 bits

Application environment

Indoor

Outdoor

Protection Level

IP45

IP67

Maintain Service

Front & Rear

Rear

Brightness

800-1200 nits

3500-5500 nits

Frame Frequency

50/60HZ

Refresh Rate

1920HZ or 3840HZ

Power Consumption

MAX: 200Watt/cabinet   Average: 65Watt/cabinet

MAX: 300Watt/cabinet   Average: 100Watt/cabinet
Standard Accessories

Sending card or sending box

Sending card or sending box

Video processor

Movable power cabinet

Hanging beam

Flight case

Power cable

Signal cable

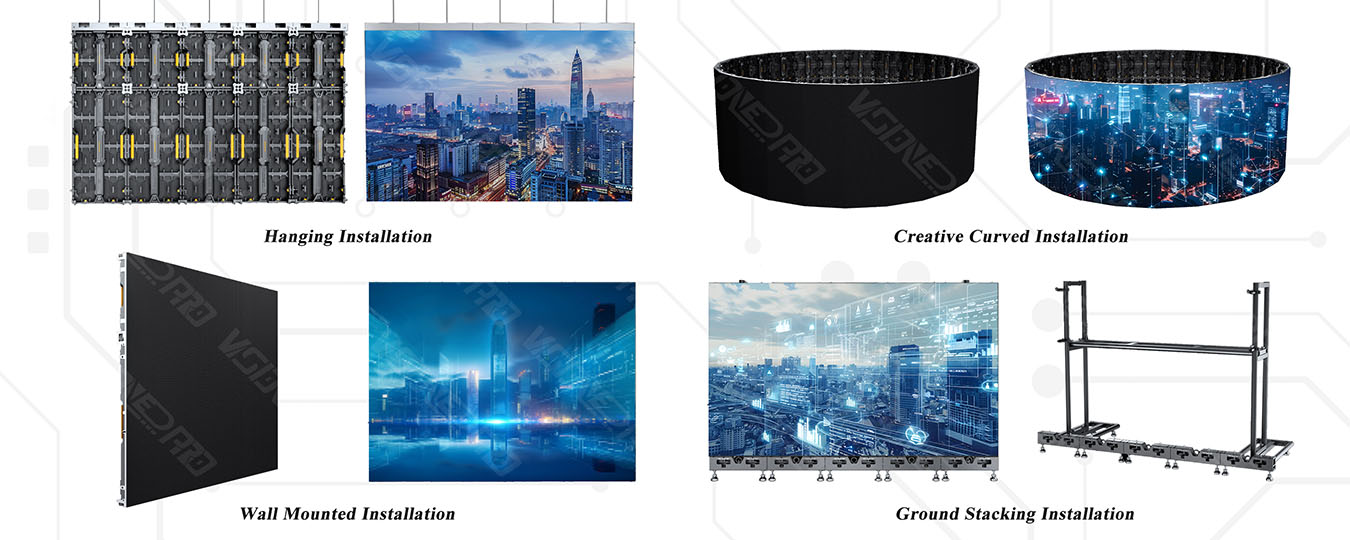

Hanging & Stacking Installation

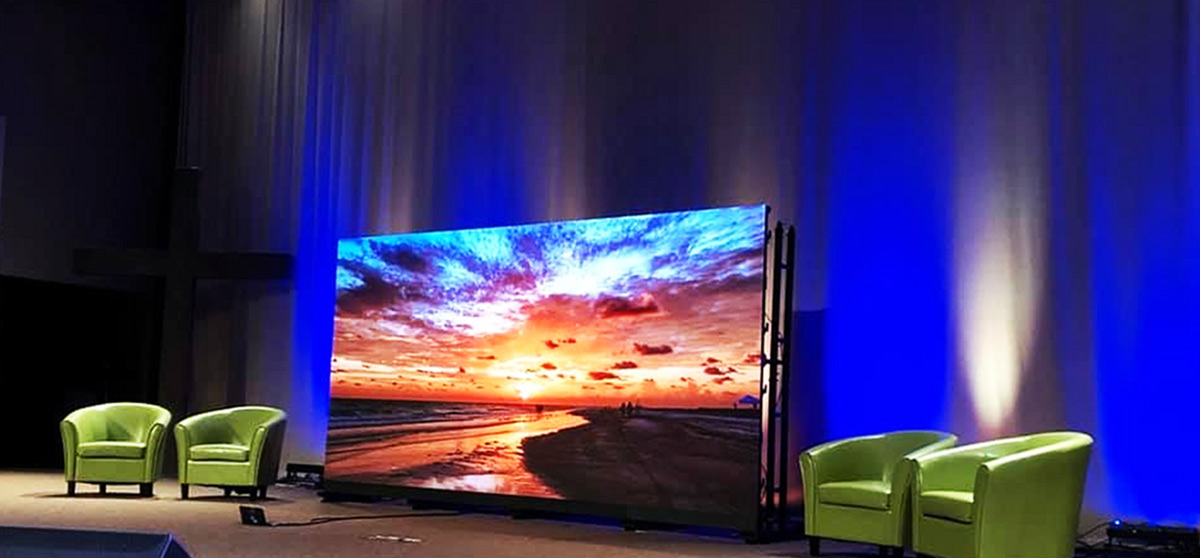

Application

Items

SL-I-3.9

SL-I-4.8SL-O-3.9

SL-O-4.8

SL-O-5.9

Pixel Pitch (mm)

P3.91

P4.81P3.91

P4.81

P5.95

LED

SMD2020

SMD2020SMD1921

SMD1921

SMD2727

Pixel Density (dot/㎡)

65536

4326465536

43264

28224

Module size (mm)

250X250

Module Resolution

64X64

52X5264X64

52X52

42X42

Cabinet size (mm)

500X1000

Cabinet Materials

Die casting Aluminum

Scanning

1/16

1/131/16

1/13

1/8

Cabinet Flatness (mm)

≤0.1

Grey Rating

14 bits

Application environment

Indoor

Outdoor

Protection Level

IP45

IP67

Maintain Service

Front & Rear

Rear

Brightness

800-1200 nits

3500-5500 nits

Frame Frequency

50/60HZ

Refresh Rate

1920HZ or 3840HZ

Power Consumption

MAX: 200Watt/cabinet   Average: 65Watt/cabinet

MAX: 300Watt/cabinet   Average: 100Watt/cabinet
