LED Poster Display for Advertising - IP Series

IP series LED Poster makes your ads happened in anywhere, especially in exhibition halls, cafes, restaurants, shopping mall, etc. our IP-G can realize seamless splicing with frameless profile by GOB technology. Optional installation solutions include ceiling hanging, floor standing, and wall mounting.

LED Poster Display for Advertising - IP Series
LED Poster Display for Advertising - IP Series
LED Poster Display for Advertising - IP Series
LED Poster Display for Advertising - IP Series

Advantage

  • Ultra-slim and lightweight

  •  High refresh rate & wide viewing angle

  • Multiple control playback modes

  • Multiple installtion method

  • 2-6 units splicing to be large screen

  • Fast heat dissipation by module with aluminum shell

  • P1.75/P2/P2.5 Led Module & Panels & Screens available

Product Detail

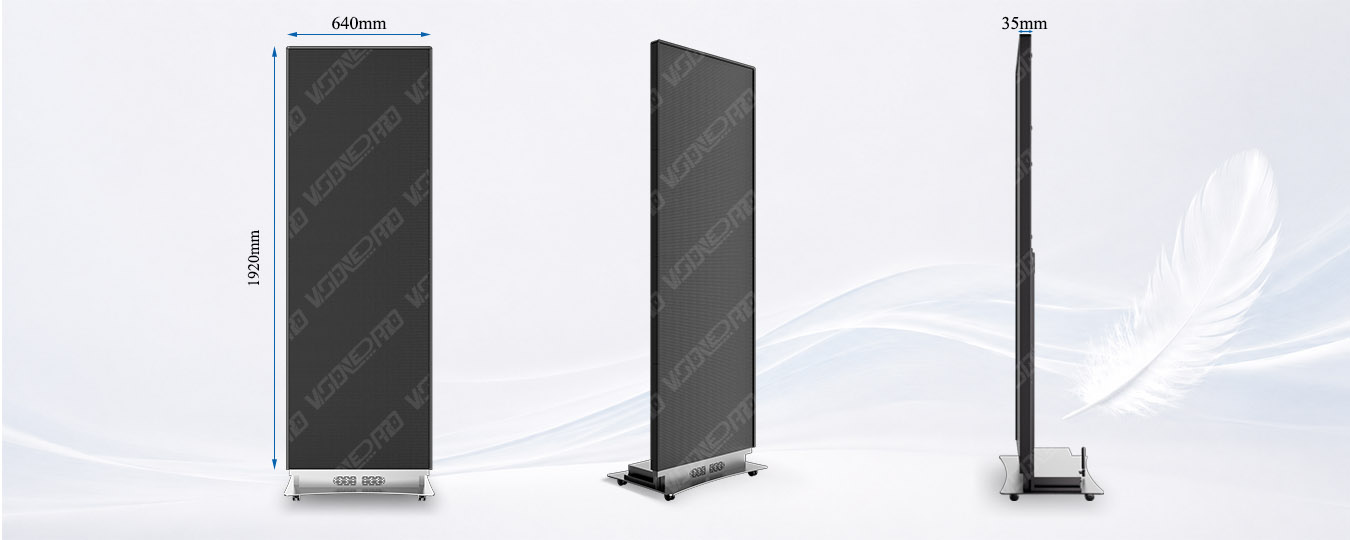

Ultra Slim & Light Weight

Ultra-thin design(35mm),  Weight of one unit poster will be 27.5kg (weight of normal poster is 45kg in market),

Standard display area is 560mmX1890mm,

Frame size of IP-N model is 570mmX1900mm,only have 5mm slim edge;  IP-G model is frameless.

IP Vision Pro.jpg

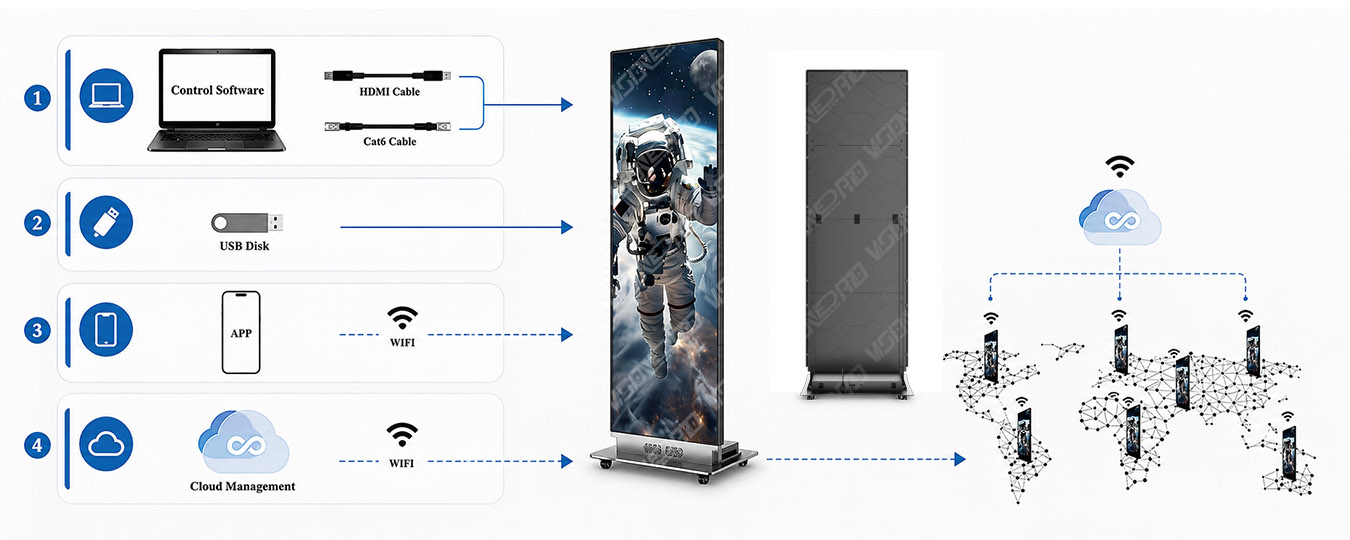

Multiple control playback modes

Support USB 、HDMI Sync、Lan AAP control to play

Support WIFI、Ethernet internet connection and so on

Plug and play,Any video automatically plays full screen,zero setting ,quick and simple.

Group management controlling is also supported, please contact us to know more details.

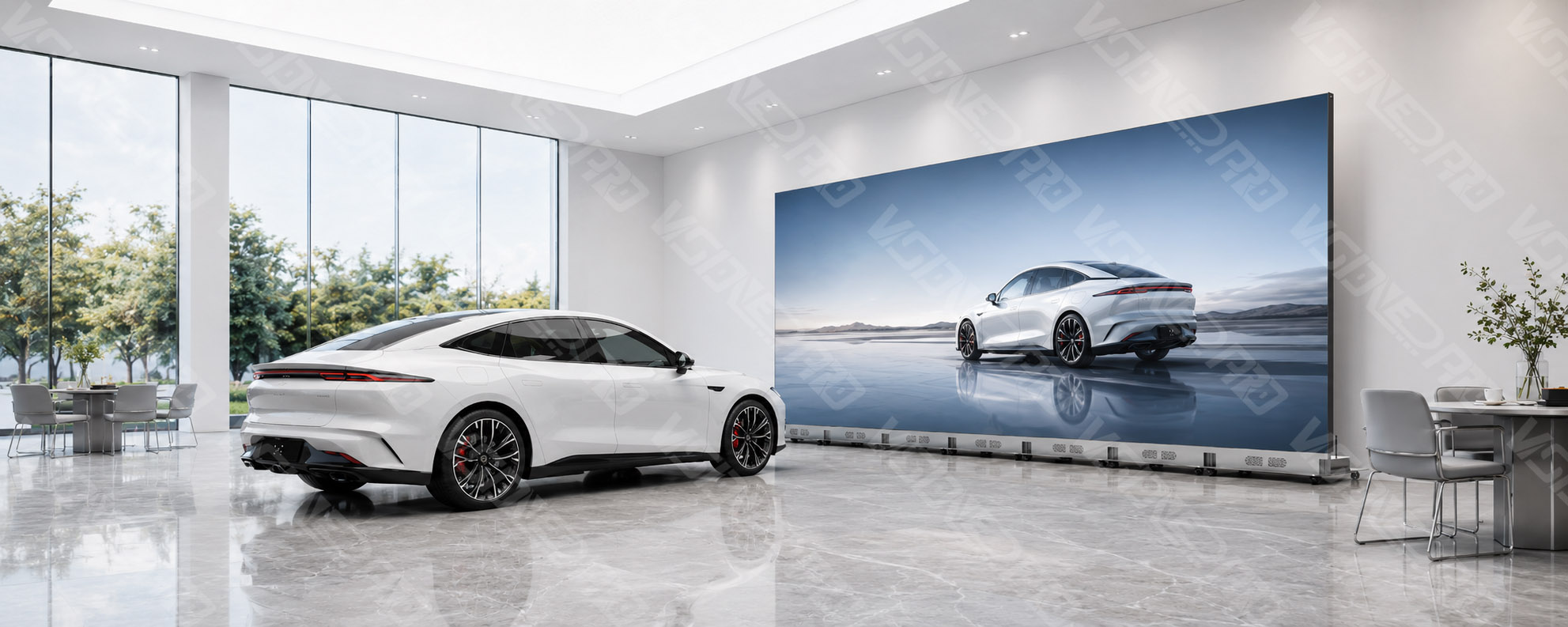

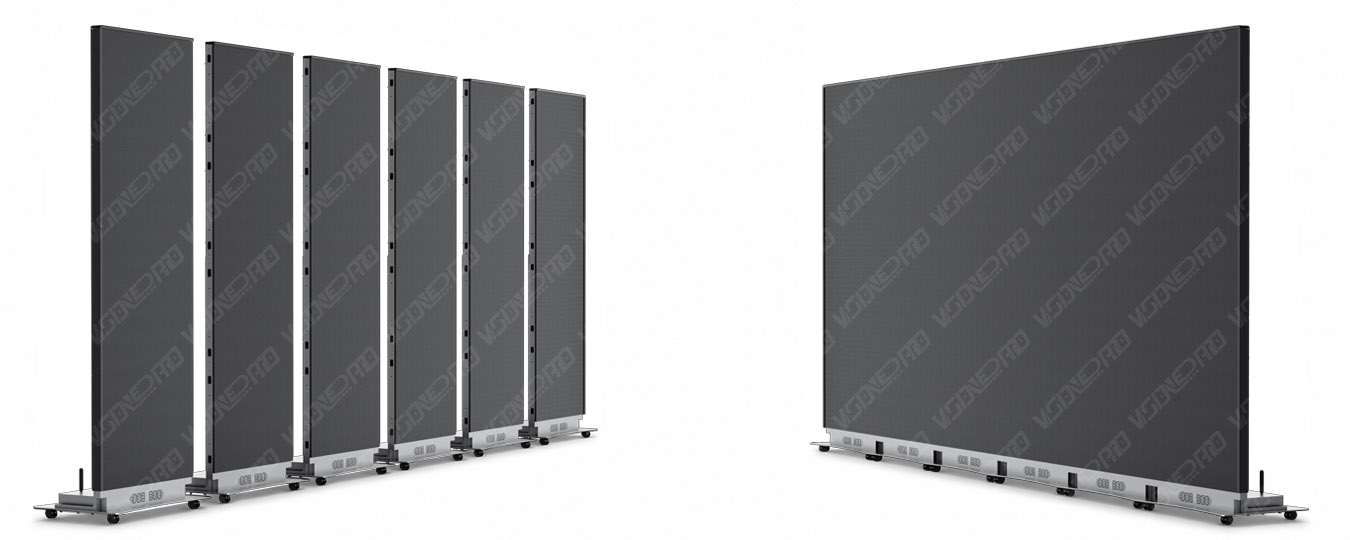

2-6 units Splicing

Multiple splicing to be large screen ,  meet more advertisements and events.

IP-G model is design with frameless by GOB tech, make seamless splicing happened.

IP-N model is with 5mm slim edge frame, surface is assembled with Polycarbonate Cover (PC), when poster power off, the front of poster like a mirror.

IP Vision Pro-1.jpg

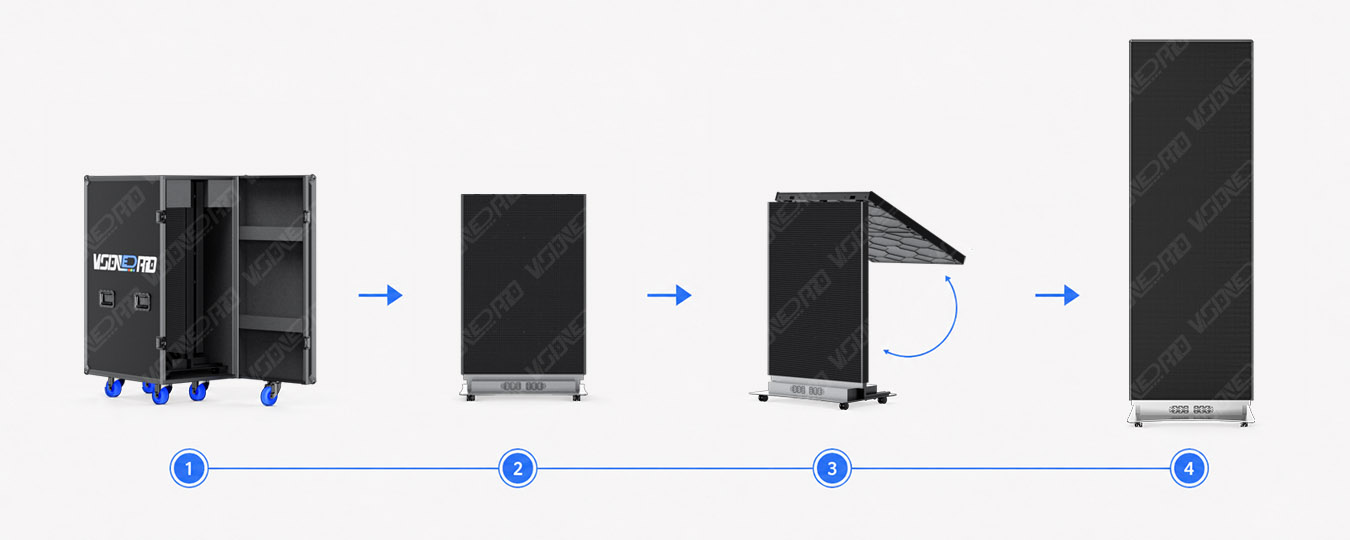

Creative Set Up

Easy isntallation method makes your set up to be creative easily.

IP Vison Pro -2.jpg

Technical Parameter

Items

IP-N-1.75

IP-N-2IP-N-2.5

IP-G-2.5

IP-G-H-2.5

Pixel Pitch (mm)

P1.75

P2P2.5

P2.5

P2.5

LED

SMD1010

SMD1515SMD2020

SMD2020-GOB

SMD1921-GOB

Module size (mm)

280X210

Module Resolution

160X120

140X105112X84

112X84

112X84

Poster Resolution320X1080280X945224X756224X756224X756
Display size(mm)560X1890

Frame size (mm)

570X1900

560X1890

Cabinet Materials

Aluminum

Grey Rating

14 bits

Application environment

Indoor

Semi-outdoor

Protection Level

IP30

Front IP65  Back IP40

Maintain Service

Rear

Brightness

1000-1200 nits

3000 nits

Frame Frequency

50/60HZ

Refresh Rate

 2800-3800 HZ

Power Consumption

MAX: 380Watt/unit   Average: 125Watt/unit

Standard Accessories

Control Card


Cat6 Signal Cable


HDMI Cable


Floor Base Support


Wall Mounted Bar


Hanging Bar


Flight case

Hanging & Stacking Installation

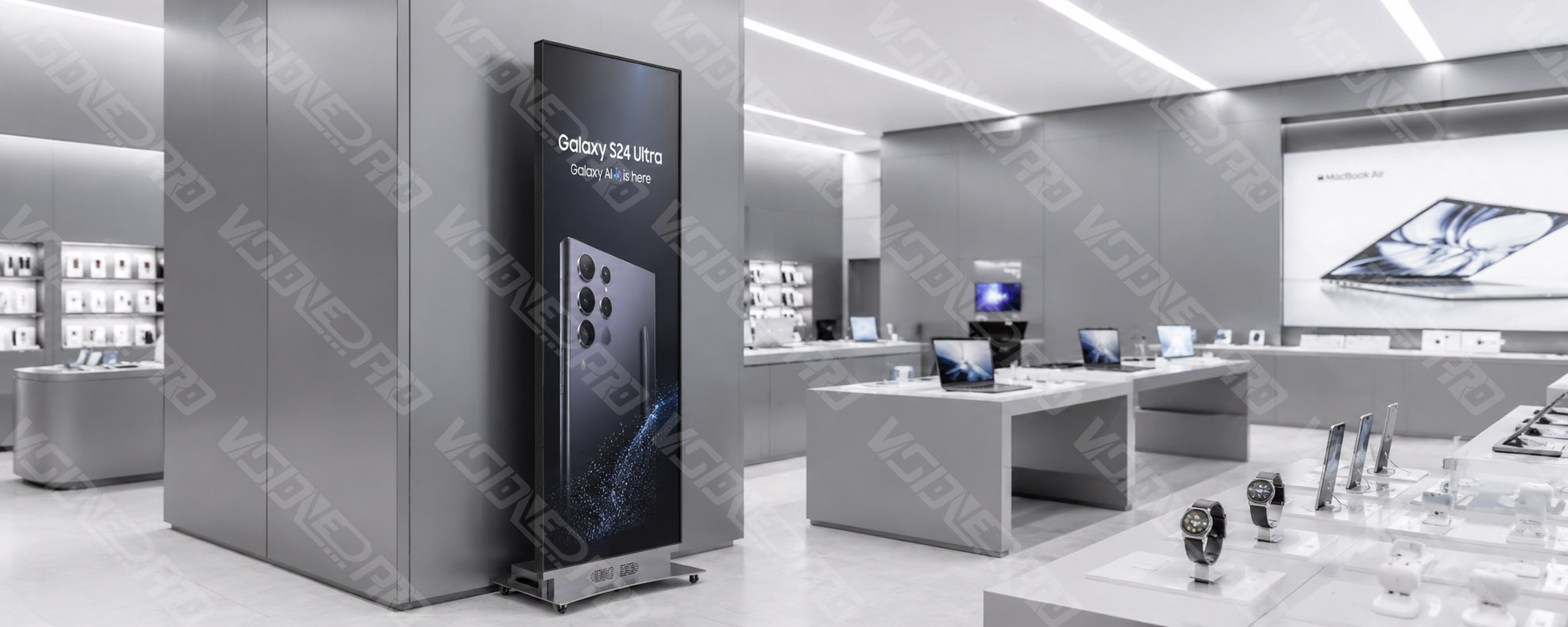

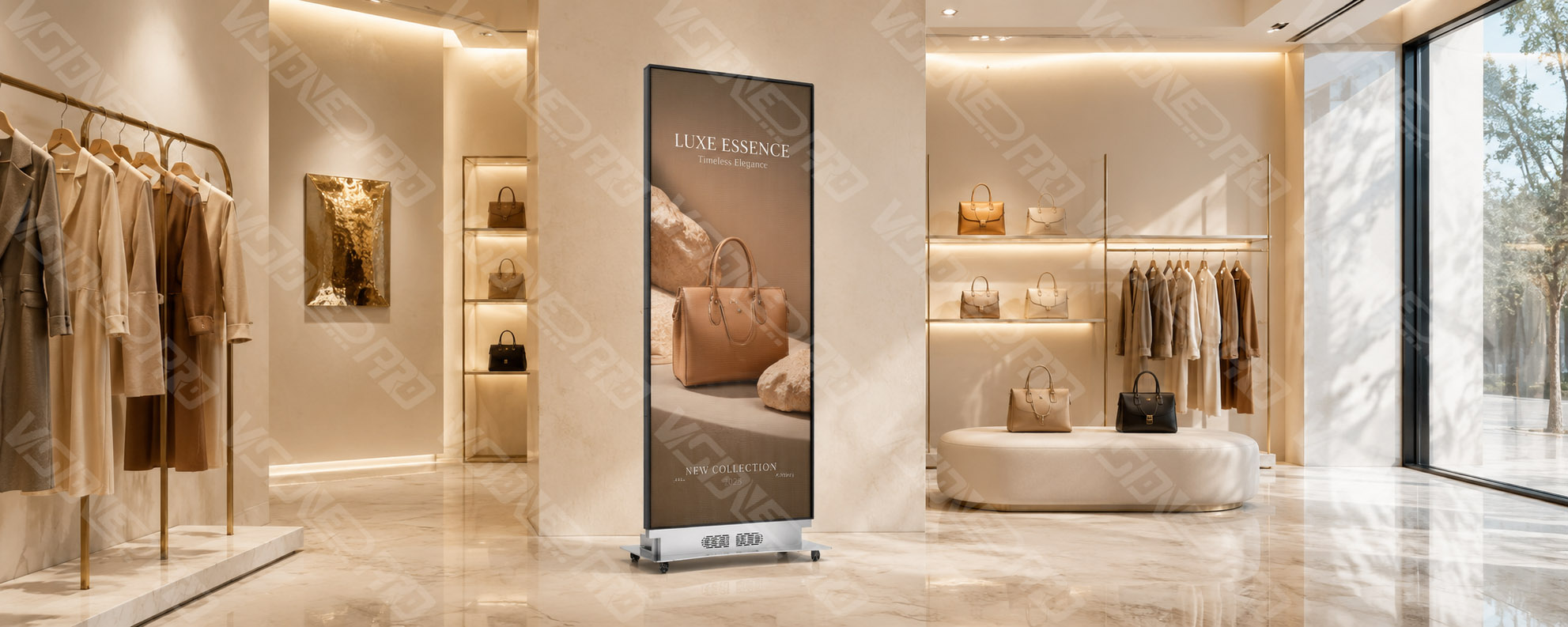

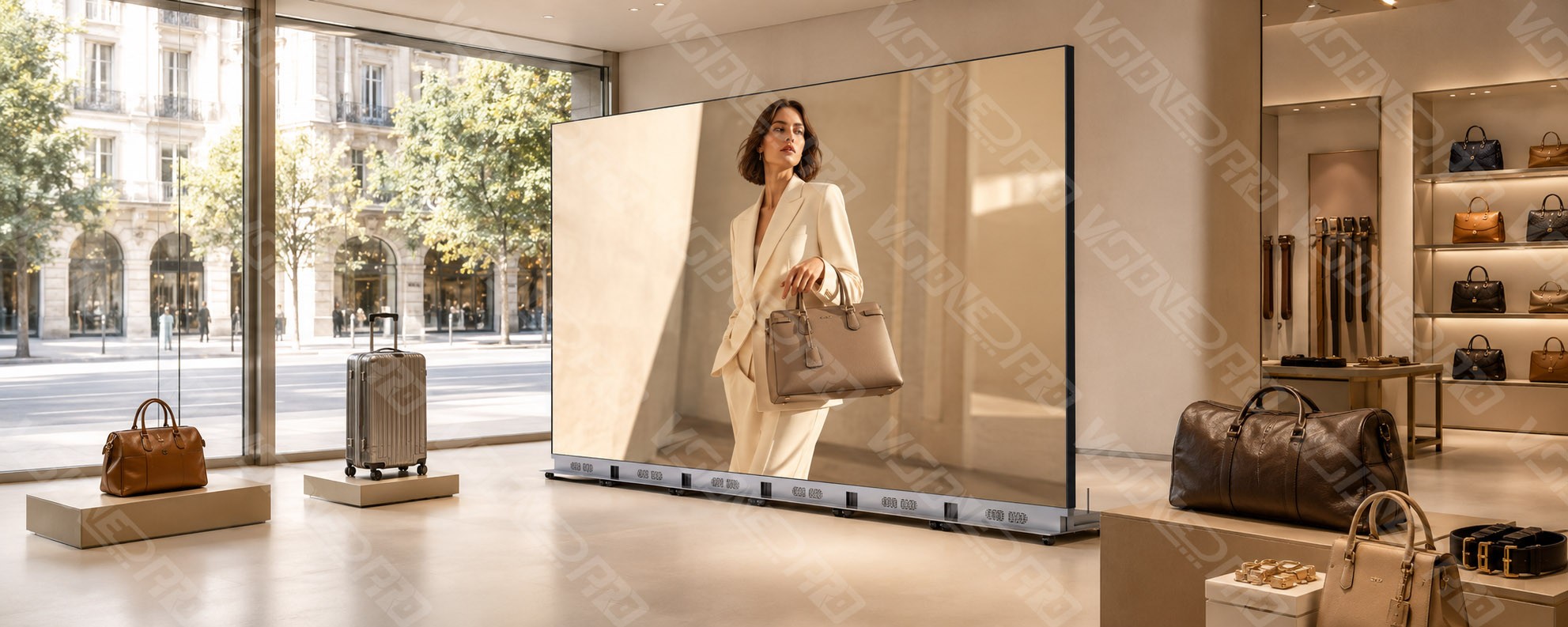

Application
After-sale Service & Support
Contact Vision Pro


Over 7 years of development, Vision Pro grow up to be a professional LED display solution provider who makes the product apply extensively in the event, concert, advertising media, meeting hall, stage, stadium, and other relevant fields.

If you got a project to handle, please provide below information and our experts will get back to you as soon as possible.
